دیتاشیت ADUC7060BSTZ32-RL
مشخصات دیتاشیت
| نام دیتاشیت | ADUC7060,61 |
|---|---|
| حجم فایل | 1365.542 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 107 |

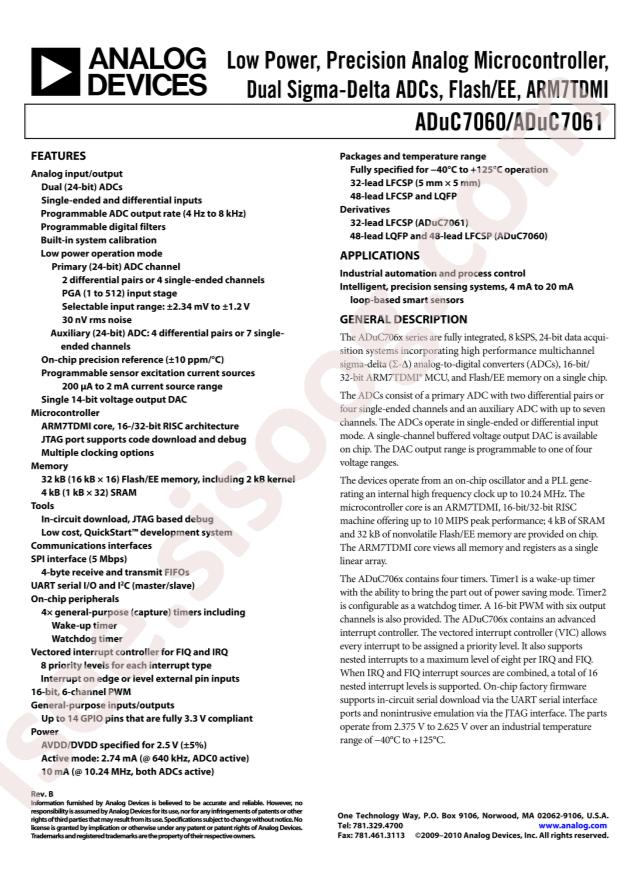

دانلود دیتاشیت ADUC7060,61 |
ADUC7060,61 Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARMOther series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 24bit
- DAC (Bit): 14bit
- Datasheet: Analog Devices ADUC7060BSTZ32-RL
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 10MHz
- GPIO Ports Number: 14
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;On-chip temperature sensor
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 32KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.375V~2.625V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: LQFP-48(7x7)
- Manufacturer: Analog Devices
- Series: MicroConverter® ADuC7xxx
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Core Processor: ARM7®
- Core Size: 16/32-Bit
- Speed: 10MHz
- Connectivity: I²C, SPI, UART/USART
- Peripherals: POR, PWM, Temp Sensor, WDT
- Number of I/O: 14
- Program Memory Size: 32KB (16K x 16)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2.375V ~ 2.625V
- Data Converters: A/D 5x24b, 8x24b; D/A 1x14b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 48-LQFP
- Supplier Device Package: 48-LQFP (7x7)
- Base Part Number: ADUC7060
- detail: ARM7® MicroConverter® ADuC7xxx Microcontroller IC 16/32-Bit 10MHz 32KB (16K x 16) FLASH 48-LQFP (7x7)
