دیتاشیت AD7934BRUZ-6REEL7
مشخصات دیتاشیت
| نام دیتاشیت | AD7933,34 |
|---|---|
| حجم فایل | 780.202 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |

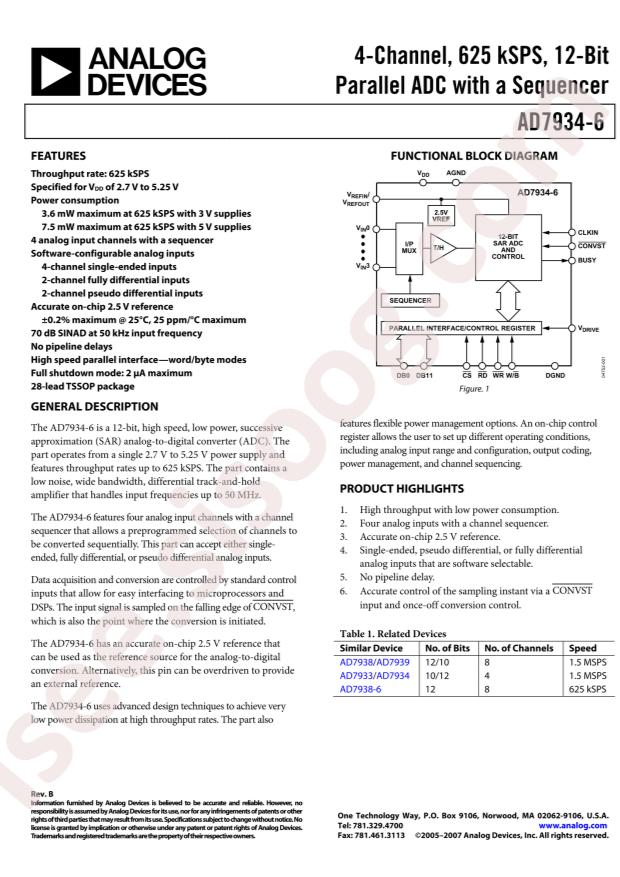

دانلود دیتاشیت AD7933,34 |
AD7933,34 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7934BRUZ-6REEL7
- Interface: Parallel
- resolution: 12Bit
- Supply Voltage: 2.7V~5.25V
- differential input: Yes
- number of channels: 4
- sampling frequency: 1.5MHz
- Operating Temperature: -40°C~+85°C
- Package: TSSOP-28
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Number of Bits: 12
- Sampling Rate (Per Second): 1.5M
- Number of Inputs: 4
- Input Type: Differential, Pseudo-Differential, Single Ended
- Data Interface: Parallel
- Configuration: MUX-S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: SAR
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 5.25V
- Voltage - Supply, Digital: 2.7V ~ 5.25V
- Features: -
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 28-TSSOP
- Mounting Type: Surface Mount
- Base Part Number: AD7934
- detail: 12 Bit Analog to Digital Converter 4 Input 1 SAR 28-TSSOP
