دیتاشیت ADV7125BCPZ170-RL

ADV7125

مشخصات دیتاشیت

نام دیتاشیت ADV7125
حجم فایل 384.893 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت ADV7125

ADV7125 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices ADV7125BCPZ170-RL
  • Operating Temperature: -40°C~+85°C

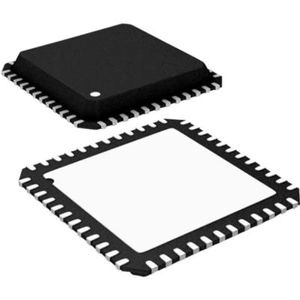

  • Package: LFCSP-48
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 8
  • Number of D/A Converters: 3
  • Settling Time: -
  • Output Type: Current - Unbuffered
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 3V ~ 3.6V, 5V
  • Voltage - Supply, Digital: 3V ~ 3.6V, 5V
  • INL/DNL (LSB): ±0.5, ±0.25
  • Architecture: Current Source
  • Package / Case: 48-VFQFN Exposed Pad, CSP
  • Supplier Device Package: 48-LFCSP-VQ (7x7)
  • Mounting Type: Surface Mount
  • Base Part Number: ADV7125
  • detail: 8 Bit Digital to Analog Converter 3 48-LFCSP-VQ (7x7)
