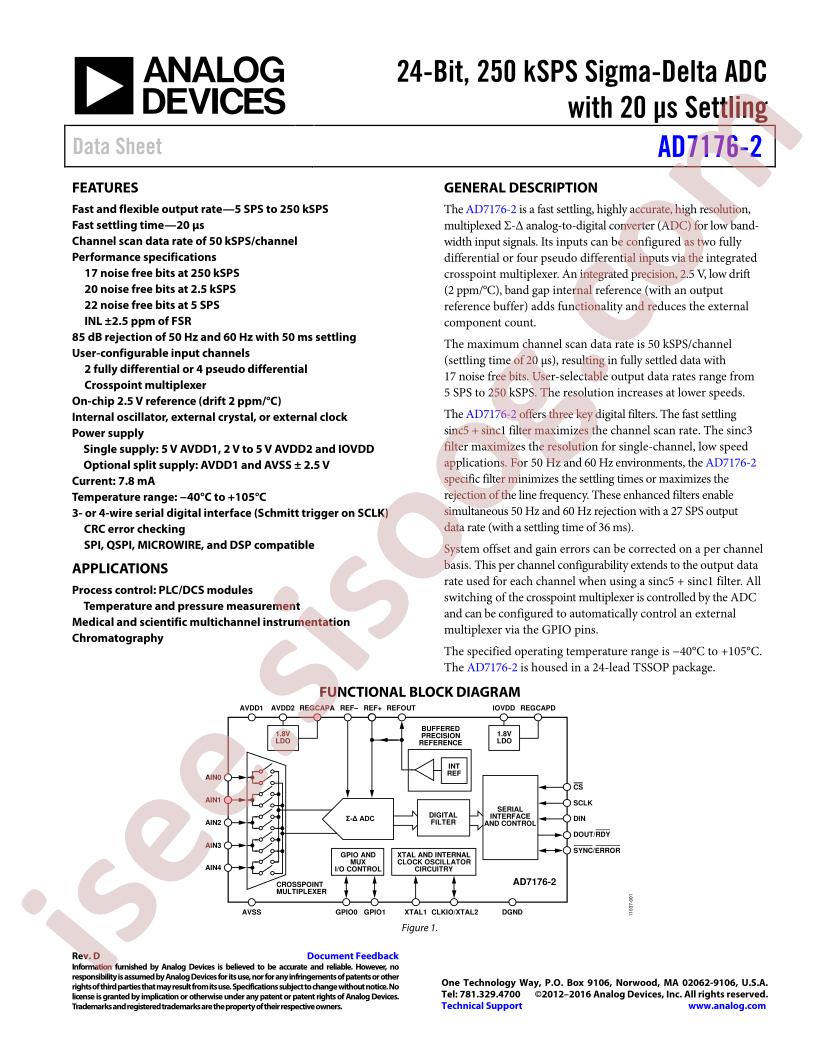

AD7176-2 Datasheet
Datasheet specifications
|
Datasheet's name
|
AD7176-2
|
|
File size
|
995.504
KB
|
|
File type
|
pdf
|
|
Number of pages
|
68
|
Technical specifications
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
-
Datasheet:
Analog Devices AD7176-2BRUZ-RL
-
Interface:
SPI;DSP
-
resolution:
24Bit
-
Supply Voltage:
2V~5.5V
-
differential input:
Yes
-
number of channels:
2;4
-
sampling frequency:
250kHz
-
Operating Temperature:
-40°C~+105°C
-
Package:
TSSOP-24
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Number of Bits:
24
-
Sampling Rate (Per Second):
250k
-
Number of Inputs:
2, 4
-
Input Type:
Differential, Pseudo-Differential
-
Data Interface:
SPI, DSP
-
Configuration:
MUX-ADC
-
Ratio - S/H:ADC:
-
-
Number of A/D Converters:
1
-
Architecture:
Sigma-Delta
-
Reference Type:
External, Internal
-
Voltage - Supply, Analog:
2V ~ 5.5V
-
Voltage - Supply, Digital:
2V ~ 5.5V
-
Features:
-
-
Package / Case:
24-TSSOP (0.173", 4.40mm Width)
-
Supplier Device Package:
24-TSSOP
-
Mounting Type:
Surface Mount
-
Base Part Number:
AD7176
-
detail:
24 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 24-TSSOP
