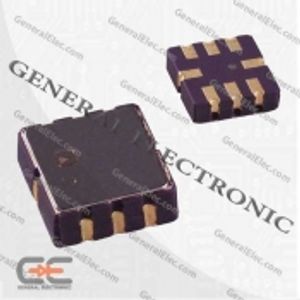

AD22035Z Datasheet

AD22035Z

Datasheet specifications

Datasheet's name AD22035Z
File size 86.372 KB
File type pdf
Number of pages 16

Download Datasheet AD22035Z

Download Datasheet

Other documentations

ADXL103,203 16 pages

Technical specifications

  • RoHS: true
  • Category: Sensors/Attitude Sensor/Gyroscope
  • Datasheet: Analog Devices AD22293Z-RL
  • Package: LCC-8(5x5)
  • Manufacturer: Analog Devices
  • Series: iMEMS®
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Type: Analog
  • Axis: X, Y
  • Acceleration Range: ±5g
  • Sensitivity (LSB/g): -
  • Sensitivity (mV/g): 312
  • Bandwidth: 0.5Hz ~ 2.5kHz
  • Output Type: Analog Voltage
  • Voltage - Supply: 3V ~ 6V
  • Features: Adjustable Bandwidth
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-CLCC
  • Supplier Device Package: 8-CLCC (5x5)
  • Base Part Number: AD22293
  • detail: Accelerometer X, Y Axis ±5g 0.5Hz ~ 2.5kHz 8-CLCC (5x5)
