دیتاشیت AD7367BRUZ-5-RL7

AD7366-5,67-5

مشخصات دیتاشیت

نام دیتاشیت AD7366-5,67-5
حجم فایل 459.722 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

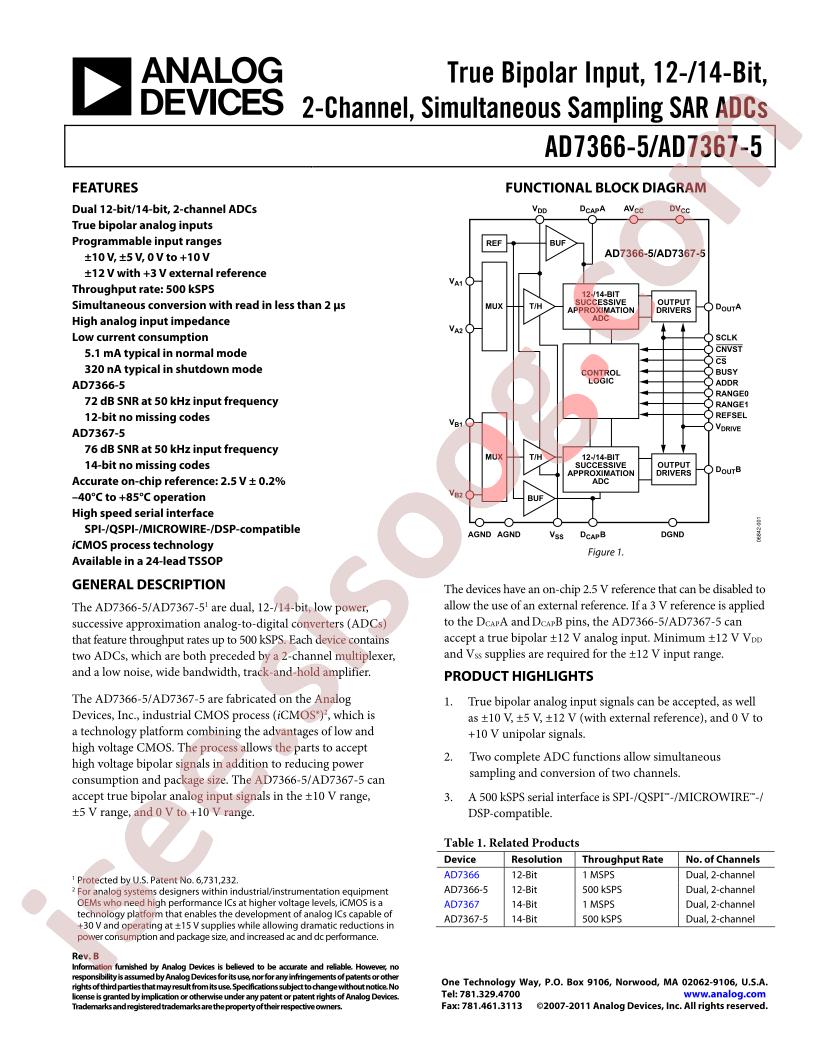

دانلود دیتاشیت AD7366-5,67-5

AD7366-5,67-5 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7367BRUZ-5-RL7
  • Interface: SPI;DSP
  • resolution: 14Bit
  • Supply Voltage: 11.5V~16.5V
  • number of channels: 4
  • sampling frequency: 500kHz
  • Operating Temperature: -40°C~+85°C

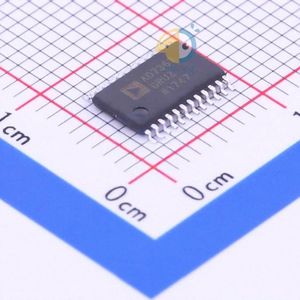

  • Package: TSSOP-24
  • Manufacturer: Analog Devices
  • Series: iCMOS®
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 14
  • Sampling Rate (Per Second): 500k
  • Number of Inputs: 4
  • Input Type: Single Ended
  • Data Interface: SPI, DSP
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 2
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: ±11.5V ~ 16.5V
  • Voltage - Supply, Digital: 5V
  • Features: Selectable Address, Simultaneous Sampling, True Bipolar
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 24-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7367
  • detail: 14 Bit Analog to Digital Converter 4 Input 2 SAR 24-TSSOP
