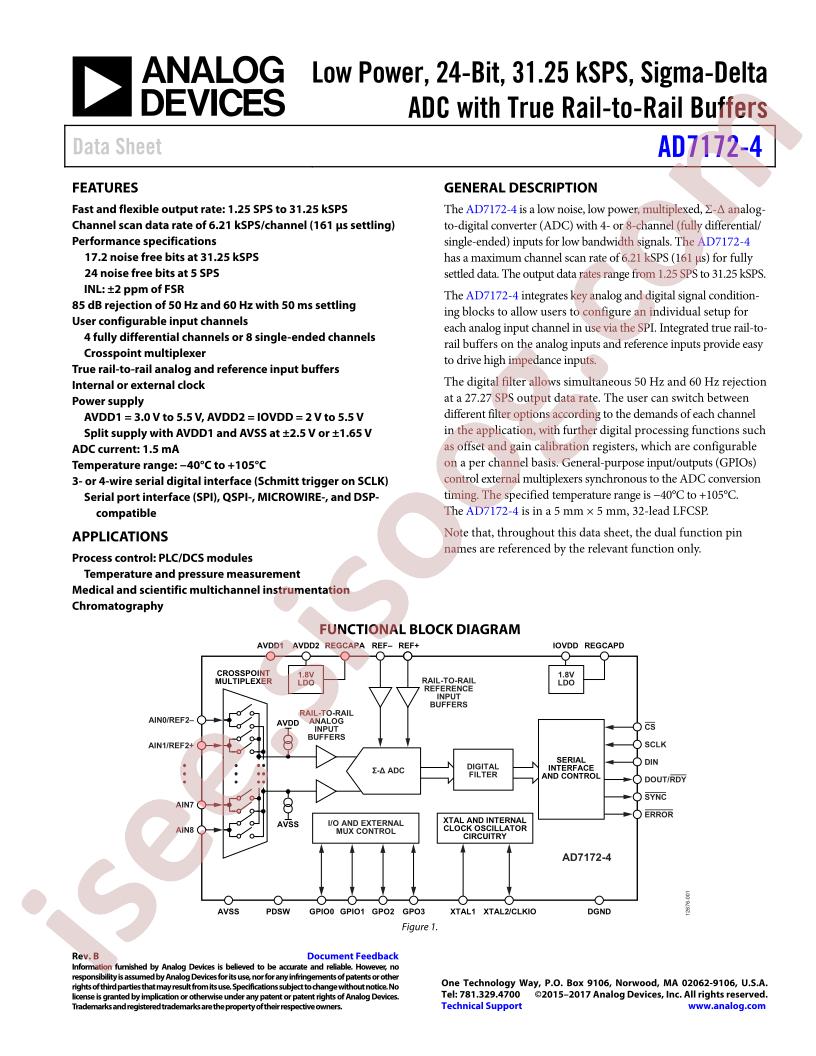

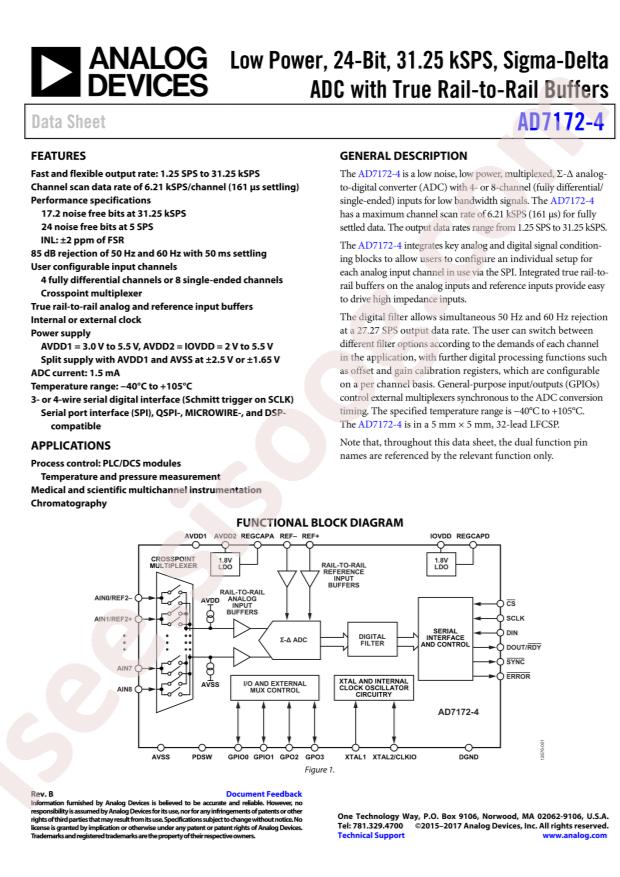

دیتاشیت AD7172-4BCPZ-RL
مشخصات دیتاشیت
| نام دیتاشیت |
AD7172-4
|
| حجم فایل |
741.336
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
61
|
مشخصات
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
-
Datasheet:
Analog Devices AD7172-4BCPZ-RL
-
Interface:
SPI;DSP
-
resolution:
24Bit
-
Supply Voltage:
2V~5.5V
-
differential input:
Yes
-
number of channels:
4;8
-
sampling frequency:
31.25kHz
-
Operating Temperature:
-40°C~+105°C
-
Package:
LFCSP-32
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Number of Bits:
24
-
Sampling Rate (Per Second):
31.25k
-
Number of Inputs:
4, 8
-
Input Type:
Differential, Single Ended
-
Data Interface:
SPI, DSP
-
Configuration:
MUX-ADC
-
Ratio - S/H:ADC:
-
-
Number of A/D Converters:
1
-
Architecture:
Sigma-Delta
-
Reference Type:
External, Internal
-
Voltage - Supply, Analog:
2V ~ 5.5V
-
Voltage - Supply, Digital:
2V ~ 5.5V
-
Features:
-
-
Package / Case:
32-VFQFN Exposed Pad, CSP
-
Supplier Device Package:
32-LFCSP-VQ (5x5)
-
Mounting Type:
Surface Mount
-
Base Part Number:
AD7172
-
detail:
24 Bit Analog to Digital Converter 4, 8 Input 1 Sigma-Delta 32-LFCSP-VQ (5x5)
