دیتاشیت AD7124-4BCPZ-RL7

مشخصات دیتاشیت

AD7124-4BCPZ-RL7	دانلود دیتاشیت

AD7124-4 93 pages

RoHS: true
Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
Datasheet: Analog Devices AD7124-4BCPZ-RL7
Interface: SPI
resolution: 24Bit
Supply Voltage: 1.8V;2.7V~3.6V
differential input: Yes
number of channels: 4;7
sampling frequency: 19.2kHz
Operating Temperature: -40°C~+105°C
Package: LFCSP-32
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Number of Bits: 24
Sampling Rate (Per Second): 19.2k
Number of Inputs: 4, 7
Input Type: Differential, Single Ended
Data Interface: SPI
Configuration: MUX-PGA-ADC
Ratio - S/H:ADC: -
Number of A/D Converters: 1
Architecture: Sigma-Delta
Reference Type: External, Internal
Voltage - Supply, Analog: ±1.8V, 2.7V ~ 3.6V
Voltage - Supply, Digital: 1.65V ~ 3.6V
Features: PGA, Temperature Sensor

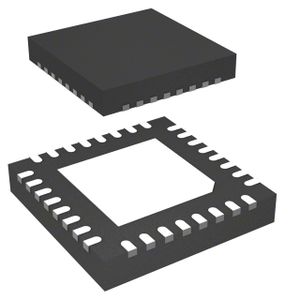

Package / Case: 32-WFQFN Exposed Pad, CSP
Supplier Device Package: 32-LFCSP (5x5)
Mounting Type: Surface Mount
Base Part Number: AD7124
detail: 24 Bit Analog to Digital Converter 4, 7 Input 1 Sigma-Delta 32-LFCSP (5x5)
