دیتاشیت MIC94063YMT-TR

MIC94060/61/62/63

مشخصات دیتاشیت

نام دیتاشیت MIC94060/61/62/63
حجم فایل 694.958 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت MIC94060/61/62/63

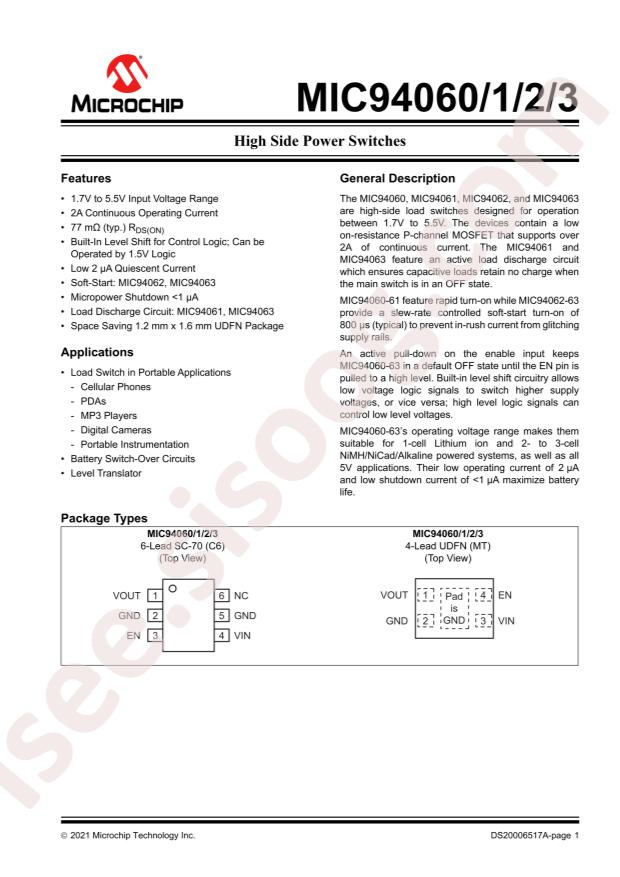

MIC94060/61/62/63 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Microchip Tech MIC94063YMT-TR
  • Package: DFN-4-EP(1.2x1.6)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: P-Channel
  • Interface: On/Off
  • Voltage - Load: 1.7V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 2A
  • Rds On (Typ): 85mOhm
  • Input Type: Non-Inverting
  • Features: Load Discharge, Slew Rate Controlled
  • Fault Protection: -
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 4-TMLF® (1.2x1.6)
  • Package / Case: 4-UFDFN Exposed Pad, 4-TMLF®
  • Base Part Number: MIC94063
  • detail: Power Switch/Driver 1:1 P-Channel 2A 4-TMLF® (1.2x1.6)
