AD9747BCPZRL 数据手册
其他文档
AD9741-47 28 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)

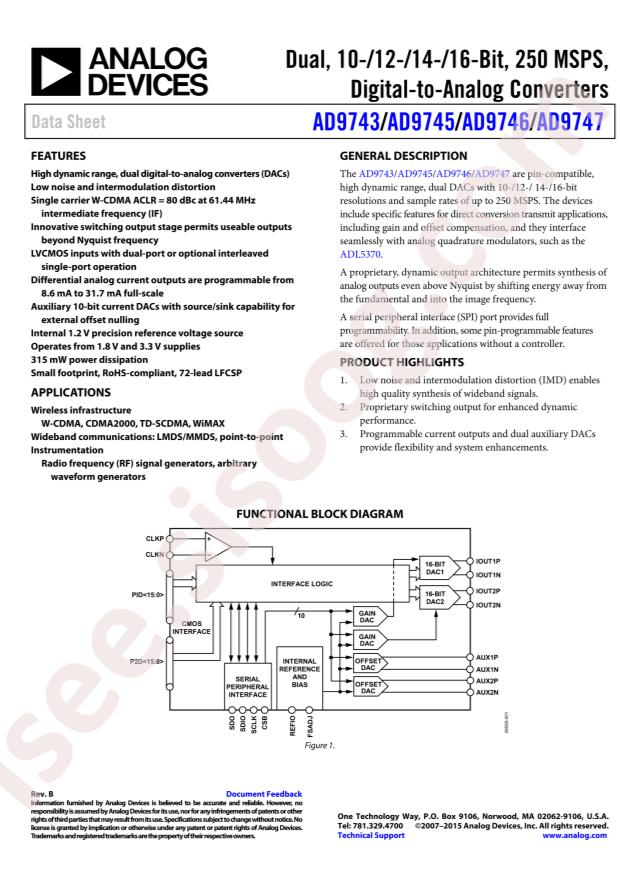

- Datasheet: Analog Devices AD9747BCPZRL
- Interface: Parallel
- Resolution: 16Bit
- Output Type: Current-非缓冲
- Supply Voltage: 1.7V~1.9V;3.13V~3.47V
- Integral nonlinearity: ±4LSB;±2LSB
- Operating Temperature: -40°C~+85°C
- Package: LFCSP-72-VQ
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 16
- Number of D/A Converters: 2
- Settling Time: -
- Differential Output: Yes
- Data Interface: Parallel
- Reference Type: External, Internal
- Voltage - Supply, Analog: 3.13V ~ 3.47V
- Voltage - Supply, Digital: 1.7V ~ 1.9V, 3.13V ~ 3.47V
- INL/DNL (LSB): ±4, ±2
- Architecture: Quad-Switch
- Package / Case: 72-VFQFN Exposed Pad, CSP
- Supplier Device Package: 72-LFCSP-VQ (10x10)
- Mounting Type: Surface Mount
- Base Part Number: AD9747
- detail: 16 Bit Digital to Analog Converter 2 72-LFCSP-VQ (10x10)
