دیتاشیت HMC1162LP5ETR

مشخصات دیتاشیت

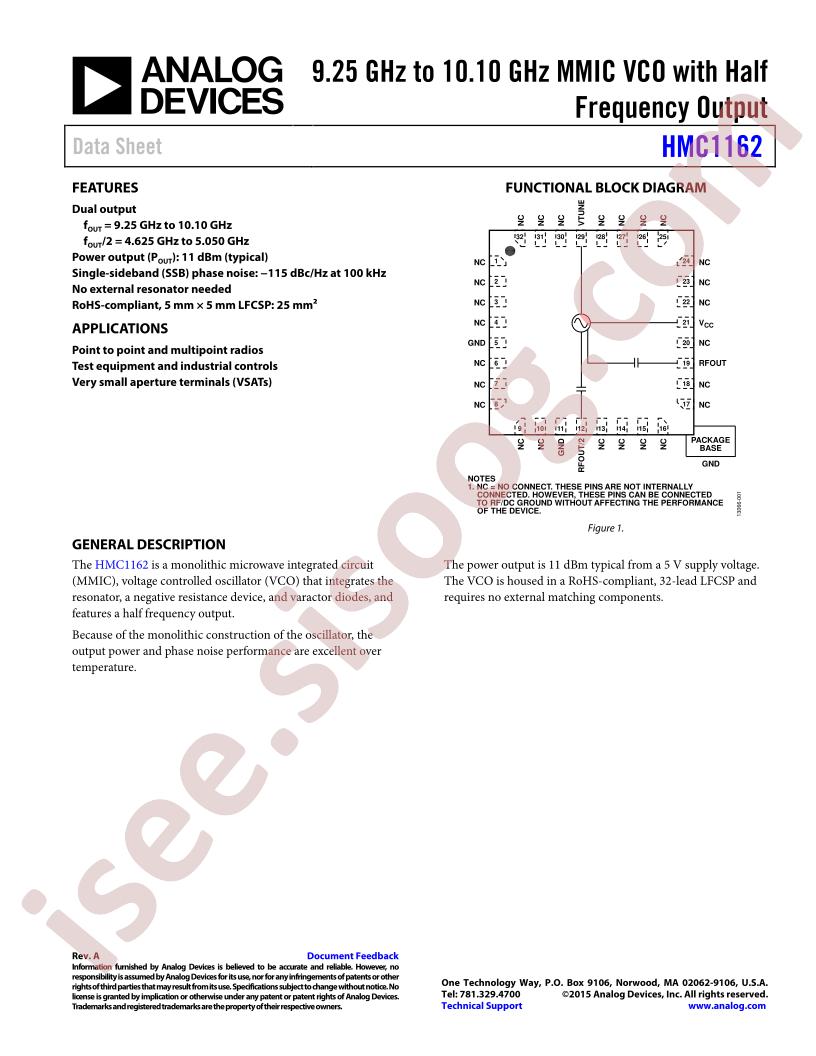

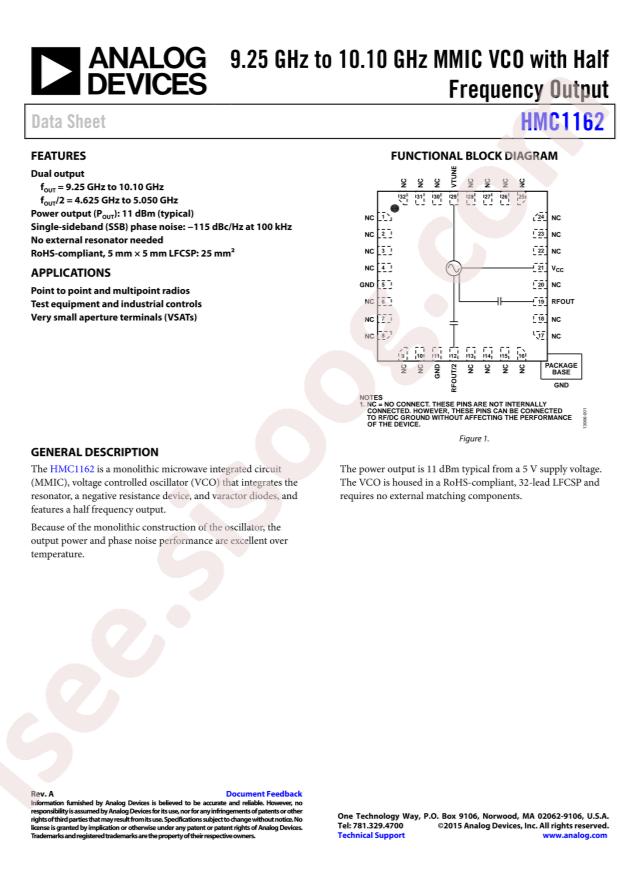

دانلود دیتاشیت HMC1162LP5E	HMC1162LP5E Datasheet

RoHS: true
Category: Radio Frequency Chip/Antenna/Voltage Controlled Oscillators (VCO)
Datasheet: Analog Devices HMC1162LP5ETR
supply voltage: 5V
operating temperature: -40°C~+85°C
Package: LFCSP-32
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Frequency Range: 4.625 ~ 5.050GHz, 9.25 ~ 10.10GHz
Frequency - Center: 4.8375GHz, 9.675GHz
Voltage - Supply: 5V
Tuning Voltage (VDC): 2V ~ 13V
2nd Harmonic, Typ (dBc): 14
Icc Max: 310mA
Pushing (MHz/V): 6
Power (dBm): 7.5±4.5, 11±4
Phase Noise Typ (dBc/Hz): -110
Package / Case: 32-VFQFN Exposed Pad, CSP
Size / Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height: 0.039" (1.00mm)
Base Part Number: HMC1162
detail: 4.8375GHz, 9.675GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator 7.5±4.5, 11±4 dBm 14 2nd Harmonic, Typ (dBc)
