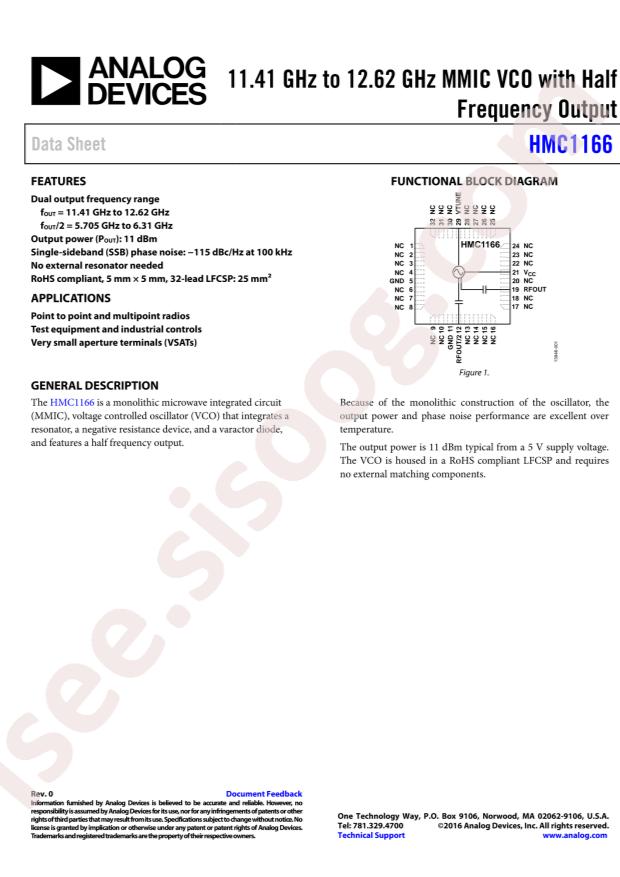

دیتاشیت HMC1166LP5ETR
مشخصات دیتاشیت
| نام دیتاشیت |
HMC1166
|
| حجم فایل |
270.224
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/Voltage Controlled Oscillators (VCO)
-
Datasheet:
Analog Devices HMC1166LP5ETR
-
supply voltage:
5V
-
operating temperature:
-40°C~+85°C
-
Package:
LFCSP-32(5x5)
-
Manufacturer:
Analog Devices
-
Series:
HMC1166
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Frequency Range:
5.705 ~ 6.31GHz, 11.41 ~ 12.62GHz
-
Frequency - Center:
6.0075GHz, 12.015GHz
-
Voltage - Supply:
5V
-
Tuning Voltage (VDC):
2V ~ 13V
-
2nd Harmonic, Typ (dBc):
20
-
Icc Max:
270mA
-
Pushing (MHz/V):
5
-
Power (dBm):
4.5±4.5, 11±4
-
Phase Noise Typ (dBc/Hz):
-89
-
Package / Case:
32-VFQFN Exposed Pad, CSP
-
Size / Dimension:
0.197" L x 0.197" W (5.00mm x 5.00mm)
-
Height:
0.039" (1.00mm)
-
Base Part Number:
HMC1166
-
detail:
6.0075GHz, 12.015GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator 4.5±4.5, 11±4 dBm 20 2nd Harmonic, Typ (dBc)
