دیتاشیت AD7865ASZ-2REEL

AD7865

مشخصات دیتاشیت

نام دیتاشیت AD7865
حجم فایل 215.441 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت AD7865

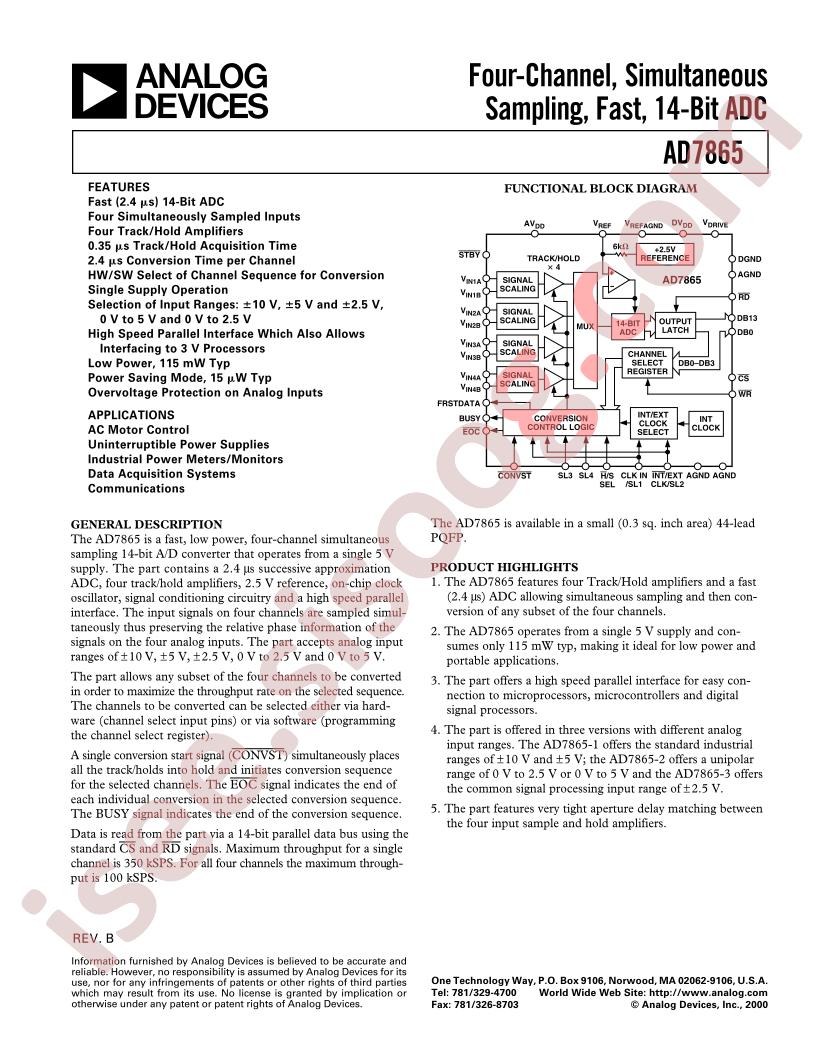

AD7865 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7865ASZ-2REEL
  • Interface: Parallel
  • resolution: 14Bit
  • Supply Voltage: 5V
  • number of channels: 4
  • sampling frequency: 350kHz
  • Operating Temperature: -40°C~+85°C
  • Package: MQFP-44(10x10)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 14
  • Sampling Rate (Per Second): 350k
  • Number of Inputs: 4
  • Input Type: Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-MUX-ADC
  • Ratio - S/H:ADC: 4:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: Simultaneous Sampling
  • Package / Case: 44-QFP
  • Supplier Device Package: 44-MQFP (10x10)
  • Mounting Type: Surface Mount
  • Base Part Number: AD7865
  • detail: 14 Bit Analog to Digital Converter 4 Input 1 SAR 44-MQFP (10x10)
