دیتاشیت ADUC7129BSTZ126-RL
مشخصات دیتاشیت
| نام دیتاشیت | ADUC7128,29 |
|---|---|
| حجم فایل | 1844.922 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 92 |
دانلود دیتاشیت ADUC7128,29 |

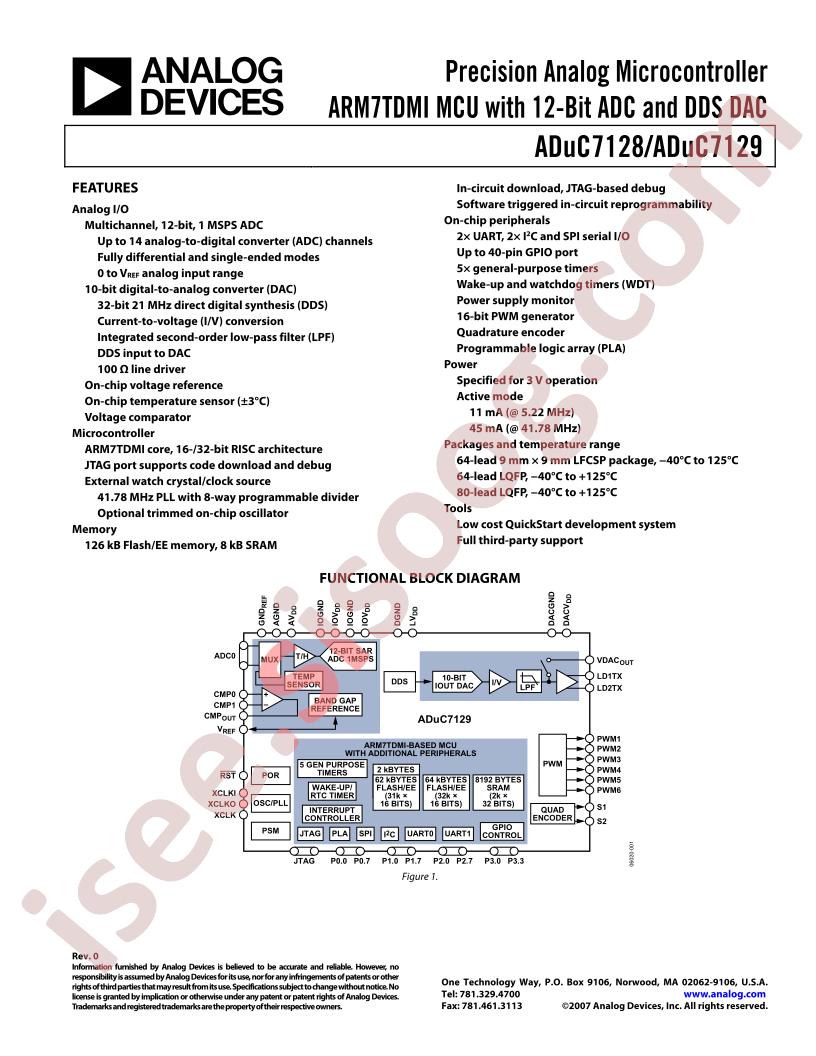

ADUC7128,29 Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARMOther series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 8KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 10bit
- Datasheet: Analog Devices ADUC7129BSTZ126-RL
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 41.78MHz
- GPIO Ports Number: 38
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: On-chip temperature sensor;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 126KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 3V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: LQFP-80(12x12)
- Manufacturer: Analog Devices
- Series: MicroConverter® ADuC7xxx
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Core Processor: ARM7®
- Core Size: 16/32-Bit
- Speed: 41.78MHz
- Connectivity: EBI/EMI, I²C, SPI, UART/USART
- Peripherals: PLA, POR, PWM, PSM, Temp Sensor, WDT
- Number of I/O: 38
- Program Memory Size: 126KB (63K x 16)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
- Data Converters: A/D 10x12b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 80-LQFP
- Supplier Device Package: 80-LQFP (12x12)
- Base Part Number: ADUC7129
- detail: ARM7® MicroConverter® ADuC7xxx Microcontroller IC 16/32-Bit 41.78MHz 126KB (63K x 16) FLASH 80-LQFP (12x12)
