دیتاشیت MCP1810T-33I/J8A

MCP1810 Datasheet

مشخصات دیتاشیت

نام دیتاشیت MCP1810 Datasheet
حجم فایل 1887.618 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

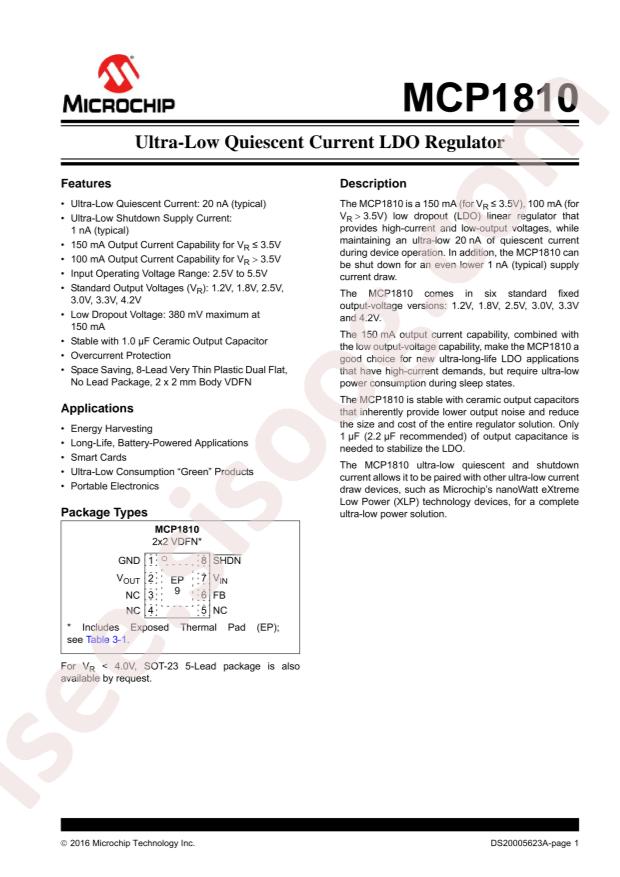

دانلود دیتاشیت MCP1810 Datasheet

MCP1810 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MCP1810T-33I/J8A
  • Output Type: Fixed
  • Output Current: 150mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 380mV@(150mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Power Supply Rejection Ratio (PSRR): 40dB@(100Hz)
  • Package: DFN-8(2x2)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.38V @ 150mA
  • Current - Output: 150mA
  • Current - Quiescent (Iq): 50nA
  • Current - Supply (Max): 290µA
  • PSRR: 40dB (100Hz)
  • Control Features: Enable
  • Protection Features: Over Current
  • Operating Temperature: -40°C ~ 85°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-VFDFN Exposed Pad
  • Supplier Device Package: 8-VDFN (2x2)
  • Base Part Number: MCP1810
  • detail: Linear Voltage Regulator IC 1 Output 150mA 8-VDFN (2x2)
