دیتاشیت AD9522-3BCPZ-REEL7

AD9522-3

مشخصات دیتاشیت

نام دیتاشیت AD9522-3
حجم فایل 1538.341 کیلوبایت
نوع فایل pdf
تعداد صفحات 84

دانلود دیتاشیت AD9522-3

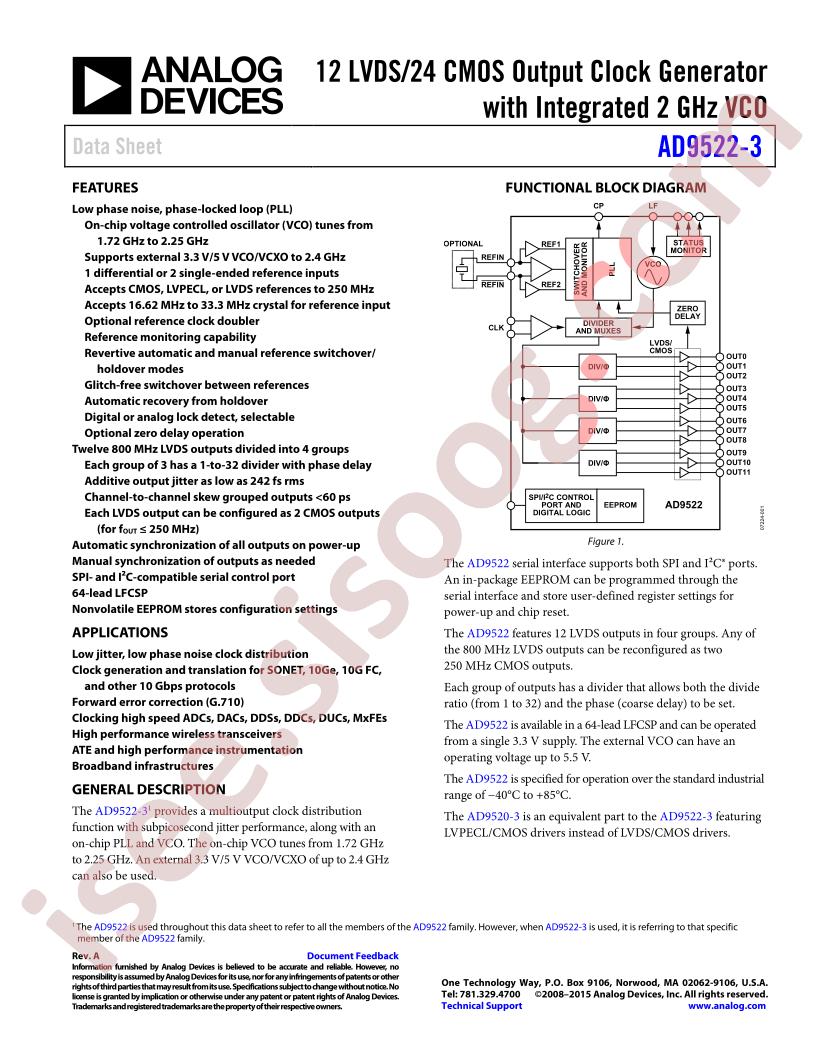

AD9522-3 Datasheet

مشخصات

  • RoHS: true
  • Category: RTC/Clock Chip/Clock Generators / Frequency Synthesizers / PLL
  • Datasheet: Analog Devices AD9522-3BCPZ-REEL7
  • Supply Voltage: 3.135V~3.465V
  • Operating Temperatue: -40°C~+85°C
  • Package: LFCSP-64
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Type: Clock Generator, Fanout Distribution
  • PLL: Yes
  • Input: CMOS, LVDS, LVPECL
  • Output: CMOS, LVDS
  • Number of Circuits: 1
  • Ratio - Input:Output: 2:12, 2:24
  • Differential - Input:Output: Yes/Yes
  • Frequency - Max: 2.25GHz
  • Divider/Multiplier: Yes/No
  • Voltage - Supply: 3.135V ~ 3.465V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 64-VFQFN Exposed Pad, CSP
  • Supplier Device Package: 64-LFCSP-VQ (9x9)
  • Base Part Number: AD9522
  • detail: IC CLOCK GEN 2GHZ VCO 64LFCSP
