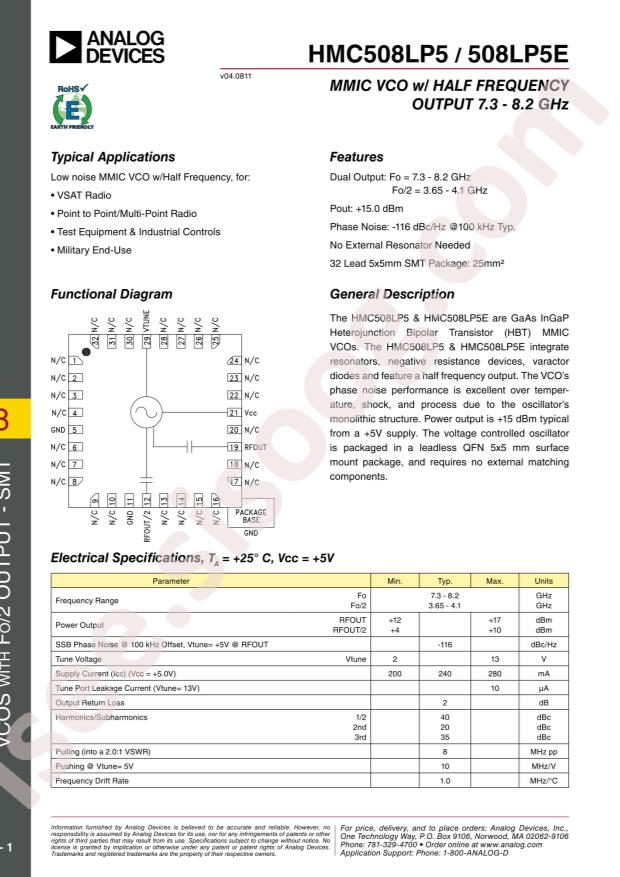

دیتاشیت HMC508LP5ETR
مشخصات دیتاشیت
| نام دیتاشیت |
HMC508LP5/E
|
| حجم فایل |
366.739
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/Voltage Controlled Oscillators (VCO)
-
Datasheet:
Analog Devices HMC508LP5ETR
-
supply voltage:
5V
-
operating temperature:
-40°C~+85°C
-
Package:
QFN-32-EP(5x5)
-
Manufacturer:
Analog Devices
-
Series:
HMC508
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Frequency Range:
3.65 ~ 4.1GHz, 7.3 ~ 8.2GHz
-
Frequency - Center:
3.875GHz, 7.75GHz
-
Voltage - Supply:
5V
-
Tuning Voltage (VDC):
2V ~ 13V
-
2nd Harmonic, Typ (dBc):
20
-
Icc Max:
280mA
-
Pushing (MHz/V):
10
-
Power (dBm):
14.5±2.5, 7±3
-
Phase Noise Typ (dBc/Hz):
-116
-
Package / Case:
32-VFQFN Exposed Pad, CSP
-
Size / Dimension:
0.197" L x 0.197" W (5.00mm x 5.00mm)
-
Height:
0.039" (1.00mm)
-
Base Part Number:
HMC508
-
detail:
3.875GHz, 7.75GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator 14.5±2.5, 7±3 dBm 20 2nd Harmonic, Typ (dBc)
