دیتاشیت MCP14A0302T-E/KBA
مشخصات دیتاشیت
| نام دیتاشیت | MCP14A0301/2 |
|---|---|
| حجم فایل | 653.919 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت MCP14A0301/2 |

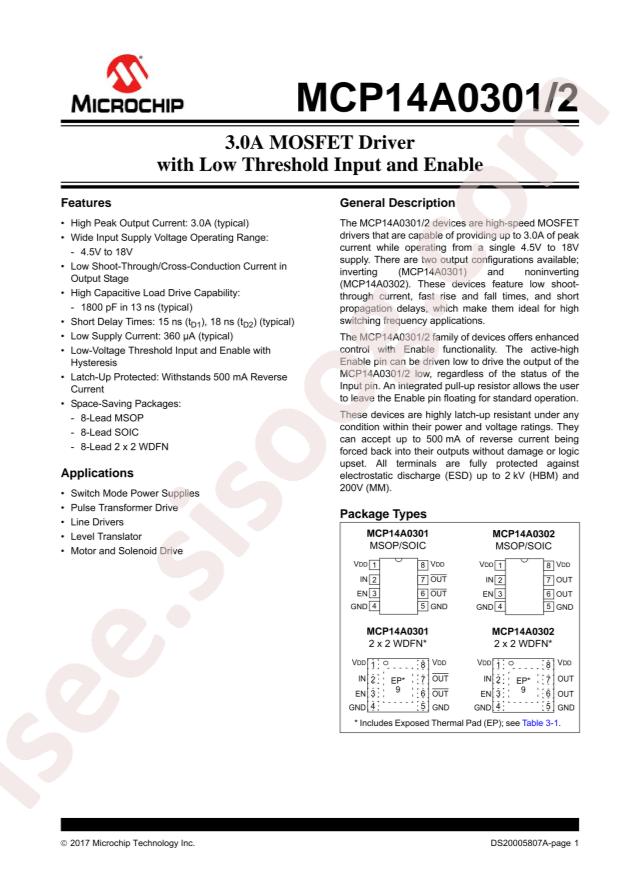

MCP14A0301/2 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Microchip Tech MCP14A0302T-E/KBA
- Fall Time: 12ns
- Load Type: IGBT
- Rise Time: 13ns
- Supply Voltage: 4.5V~18V
- Number of Drivers: 1
- Driven Configuration: High Side;Low Side
- Operating Temperature: -40°C~+125°C@(Ta)
- Peak Output Current(sink): 3A
- Peak Output Current(source): 3A
- Package: DFN-8-EP(2x2)
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Channel Type: Single
- Gate Type: IGBT
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 3A, 3A
- Input Type: Inverting, Non-Inverting
- Rise / Fall Time (Typ): 13ns, 12ns
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-WDFN (2x2)
- detail: High-Side or Low-Side Gate Driver IC Inverting, Non-Inverting 8-WDFN (2x2)
