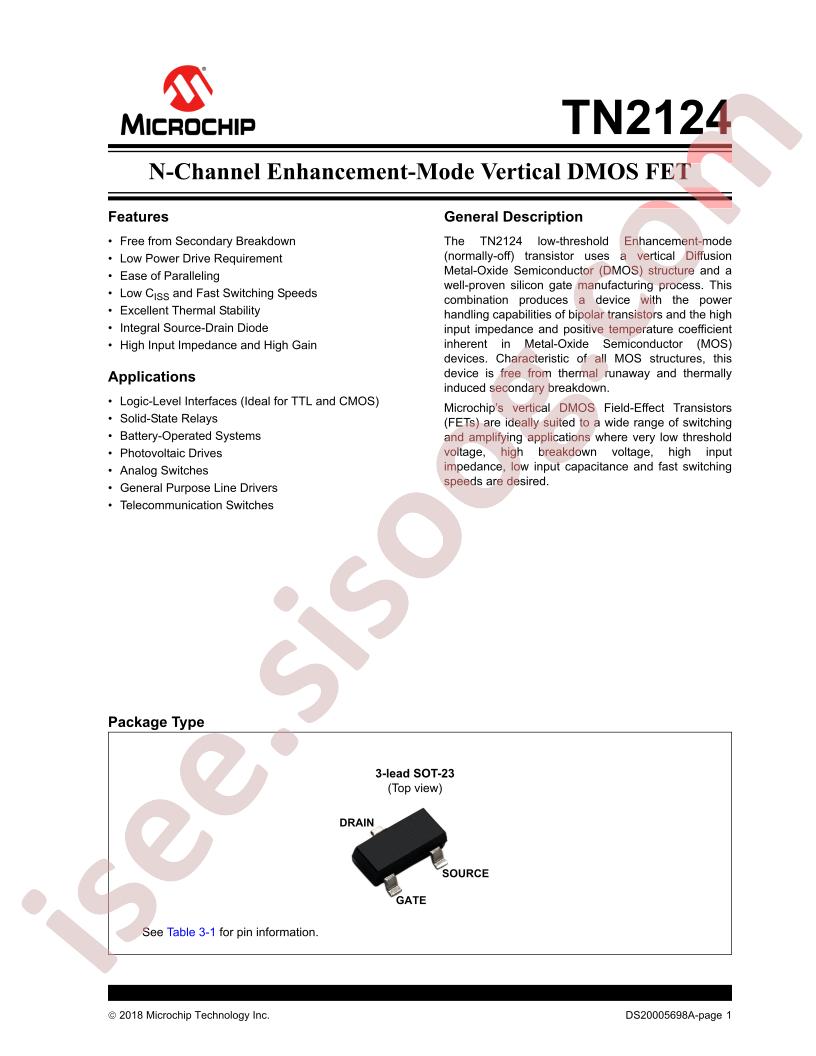

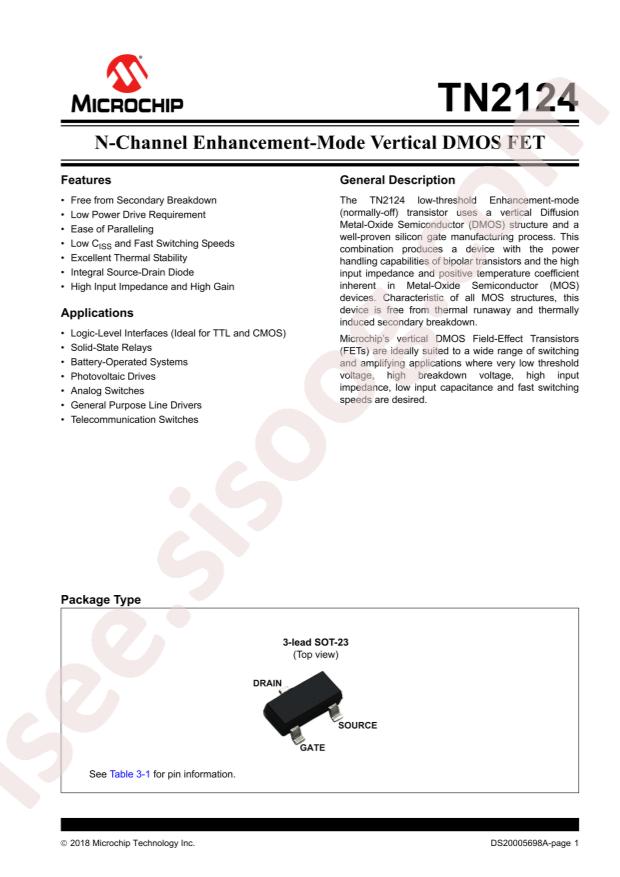

دیتاشیت TN2124K1-G
مشخصات دیتاشیت
| نام دیتاشیت |
TN2124
|
| حجم فایل |
1425.89
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Microchip Tech TN2124K1-G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
360mW
-
Drain Source Voltage (Vdss):
240V
-
Input Capacitance (Ciss@Vds):
50pF@25V
-
Continuous Drain Current (Id):
134mA
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
15Ω@120mA,4.5V
-
Package:
SOT-23-3
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
240V
-
Current - Continuous Drain (Id) @ 25°C:
134mA (Tj)
-
Drive Voltage (Max Rds On, Min Rds On):
3V, 4.5V
-
Rds On (Max) @ Id, Vgs:
15Ohm @ 120mA, 4.5V
-
Vgs(th) (Max) @ Id:
2V @ 1mA
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
50pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
360mW (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-236AB (SOT23)
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
detail:
N-Channel 240V 134mA (Tj) 360mW (Tc) Surface Mount TO-236AB (SOT23)
