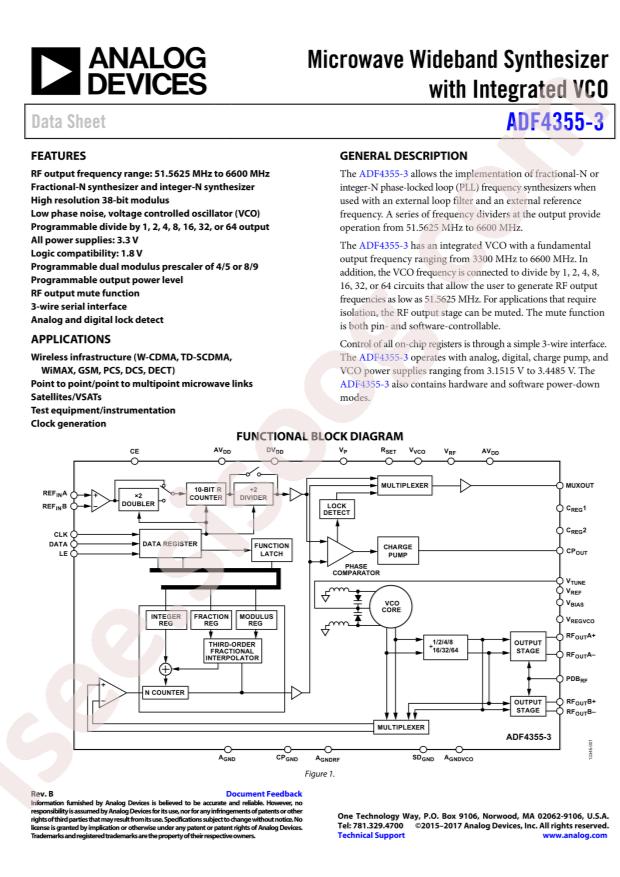

ADF4355-3BCPZ-RL7 Datasheet
Datasheet specifications
| Datasheet's name | ADF4355-3BCPZ-RL7 |
|---|---|
| File size | 103.78 KB |
| File type | |
| Number of pages | 34 |
Download Datasheet ADF4355-3BCPZ-RL7 |
Download Datasheet |
|---|
Other documentations
ADF4355-3 34 pages
Technical specifications
- RoHS: true
- Category: RTC/Clock Chip/Clock Generators / Frequency Synthesizers / PLL
- Datasheet: Analog Devices ADF4355-3BCPZ-RL7
- Supply Voltage: 3.15V~3.45V
- Operating Temperatue: -40°C~+105°C
- Output Frequency (Max): 6.6GHz
- Package: LFCSP-32(5x5)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Type: Fanout Distribution, Fractional N, Integer N, Clock/Frequency Synthesizer (RF)
- PLL: Yes
- Input: Clock
- Output: Clock
- Number of Circuits: 1
- Ratio - Input:Output: 1:3
- Differential - Input:Output: Yes/Yes
- Frequency - Max: 6.6GHz
- Divider/Multiplier: Yes/Yes
- Voltage - Supply: 3.15V ~ 3.45V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 32-WFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP (5x5)
- Base Part Number: ADF4355
- detail: IC INTEGRATED SYNTH/VCO 32LFCSP
