- UCC2540

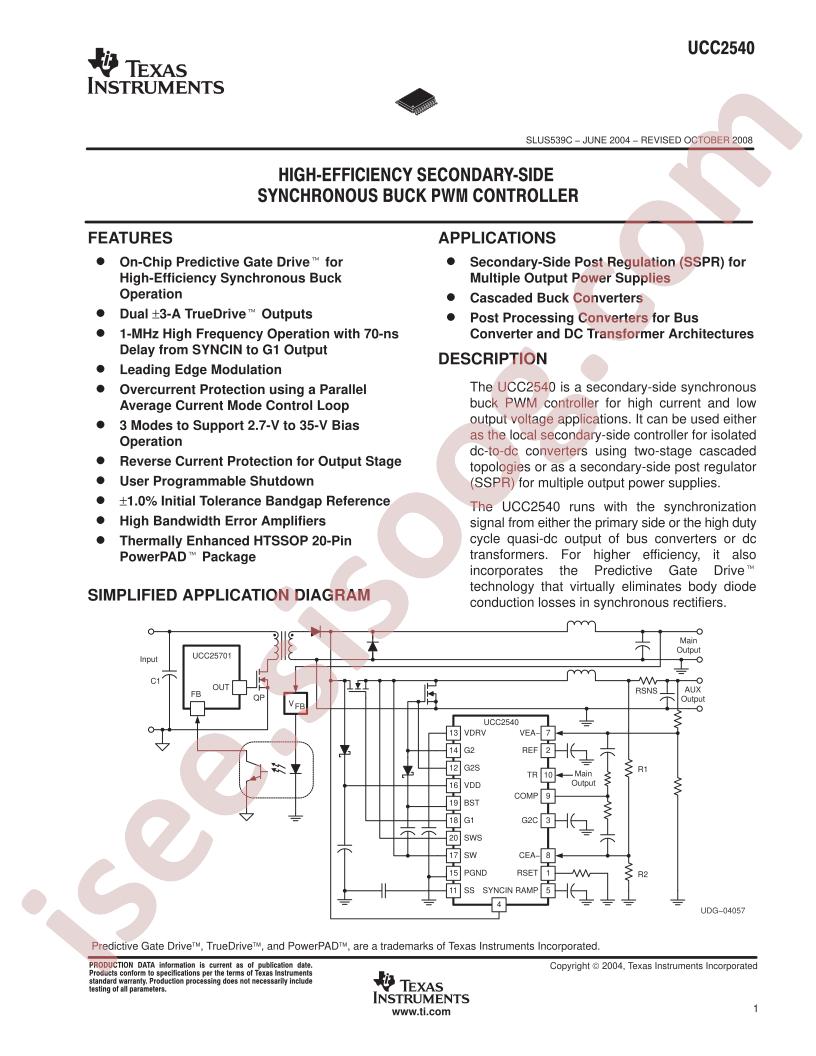

UCC2540 Datasheet
Datasheet specifications
| Datasheet's name | UCC2540 |
|---|---|
| File size | 1292.541 KB |
| File type | |
| Number of pages | 43 |
Download Datasheet UCC2540 |
Download Datasheet |
|---|
Other documentations

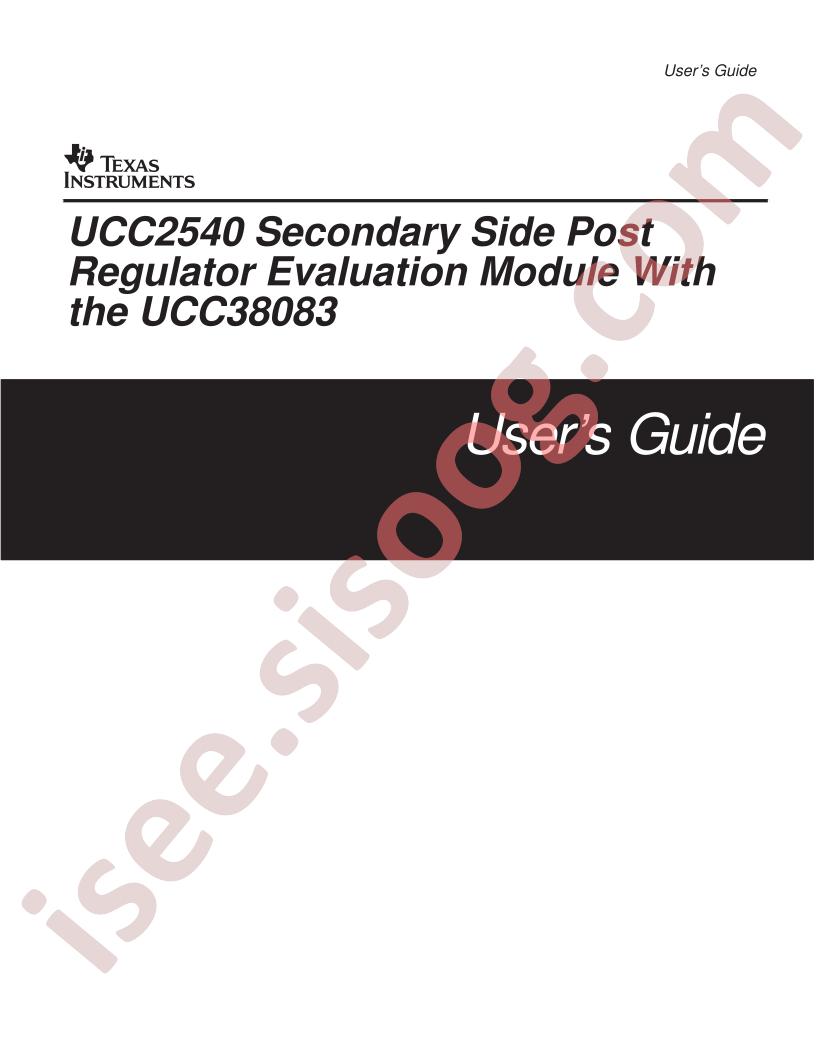

UCC2540EVM User Guide 26 pages
Technical specifications
- Series: Predictive Gate Drive™
- Board Type: Fully Populated
- Outputs and Type: 2, Isolated
- Current - Output: 7.5A, 7.5A
- Frequency - Switching: 400kHz
- Main Purpose: AC/DC, Primary and Secondary Side
- Part Status: Obsolete
- Base Part Number: UCC254
- Utilized IC / Part: UCC2540, UCC38083
- Voltage - Input: 18.5V ~ 35V
- Manufacturer: Texas Instruments
- Power - Output: 36W
- Voltage - Output: 1.5V, 3.3V
- Supplied Contents: Board(s)
- Regulator Topology: Buck
- detail: UCC2540, UCC38083 Predictive Gate Drive™ AC/DC, Primary and Secondary Side 2, Isolated Outputs Evaluation Board
