دیتاشیت REG1117FA-1.8/500
مشخصات دیتاشیت
| نام دیتاشیت | REG1117(A) Datasheet |
|---|---|
| حجم فایل | 261.683 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |

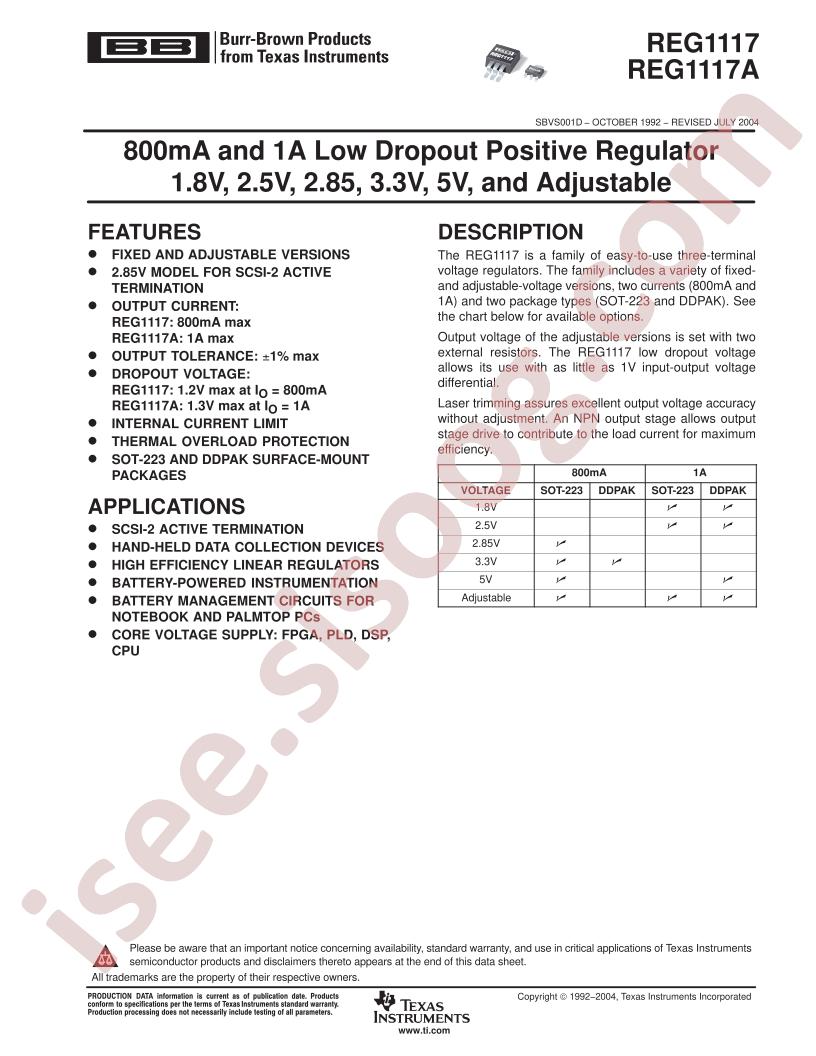

دانلود دیتاشیت REG1117(A) Datasheet |
REG1117(A) Datasheet Datasheet |
|---|
مشخصات
- Series: -
- Voltage Dropout (Max): 1.55V @ 1A
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Base Part Number: REG111
- Supplier Device Package: DDPAK/TO-263-3
- Current - Output: 1A
- Current - Quiescent (Iq): 10mA
- Part Status: Obsolete
- Voltage - Input (Max): 15V
- Mounting Type: Surface Mount
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Voltage - Output (Min/Fixed): 1.8V
- Manufacturer: Texas Instruments
- PSRR: 62dB (120Hz)
- Voltage - Output (Max): -
- Packaging: Cut Tape (CT)
- Output Configuration: Positive
- Number of Regulators: 1
- Output Type: Fixed
- detail: Linear Voltage Regulator IC 1 Output 1A DDPAK/TO-263-3
