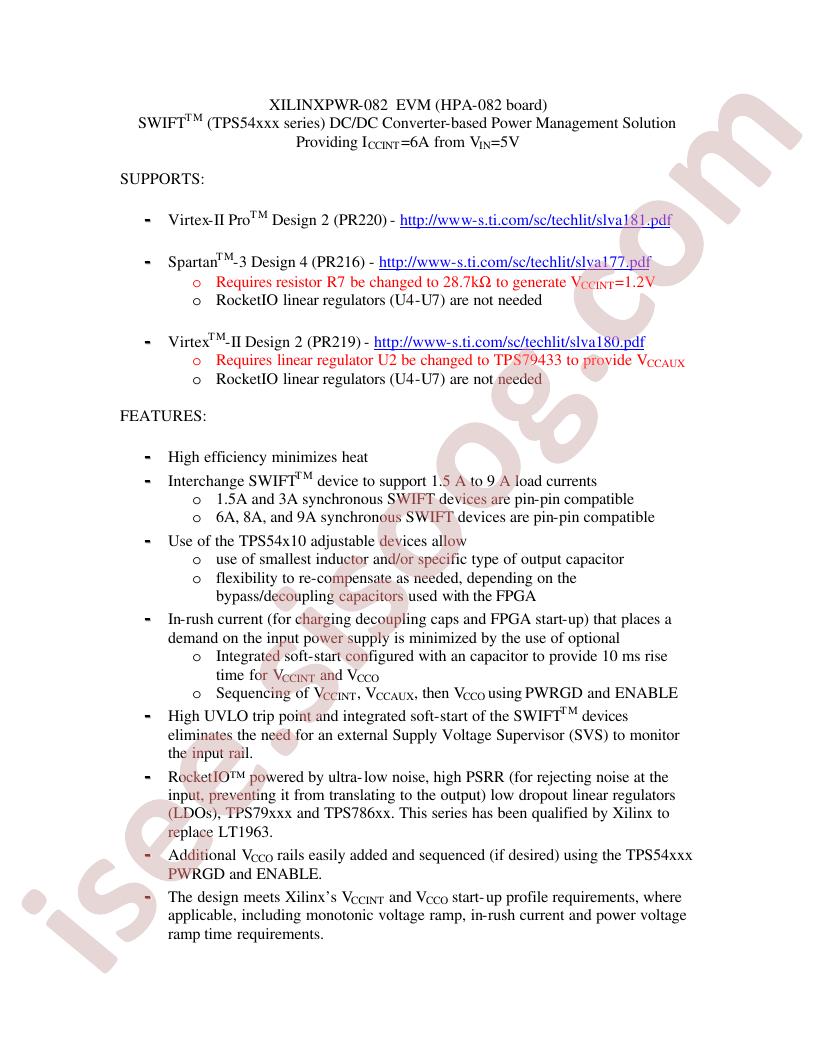

XILINXPWR-082 Datasheet
Datasheet specifications
| Datasheet's name | XILINXPWR-082 |
|---|---|
| File size | 165.513 KB |
| File type | |
| Number of pages | 8 |
Download Datasheet XILINXPWR-082 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Series: SWIFT™
- Board Type: Fully Populated
- Outputs and Type: 7, Non-Isolated
- Current - Output: 6A, 6A, 250mA, 60mA, 35mA, 30mA, 15mA
- Frequency - Switching: -
- Main Purpose: DC/DC, Step Down with LDO
- Part Status: Obsolete
- Utilized IC / Part: Xilinx FPGAs
- Voltage - Input: 5V
- Manufacturer: Texas Instruments
- Voltage - Output: 1.5V, 2.5V, 2.5V, 2.5V, 3.3V, 1.8V ~ 2.625V, 1.8V ~ 2.625V
- Supplied Contents: Board(s)
- Regulator Topology: Buck
- detail: Xilinx FPGAs SWIFT™ DC/DC, Step Down with LDO 7, Non-Isolated Outputs Evaluation Board
