AD7985 Datasheet
Datasheet specifications
| Datasheet's name | AD7985 |
|---|---|
| File size | 576.714 KB |
| File type | |
| Number of pages | 28 |
Download Datasheet AD7985 |
Download Datasheet |
|---|
Other documentations
EVAL-AD7944FMCZ,85-86FMCZ Guide 31 pages
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: PulSAR®
- Packaging: Box
- Part Status: Active
- Number of A/D Converters: 1
- Number of Bits: 16
- Sampling Rate (Per Second): 2.5M
- Data Interface: SPI, DSP
- Input Range: 0 ~ VREF
- Power (Typ) @ Conditions: 28mW @ 2.5MSPS
- Utilized IC / Part: AD7985
- Supplied Contents: Board(s)
- Base Part Number: AD7985

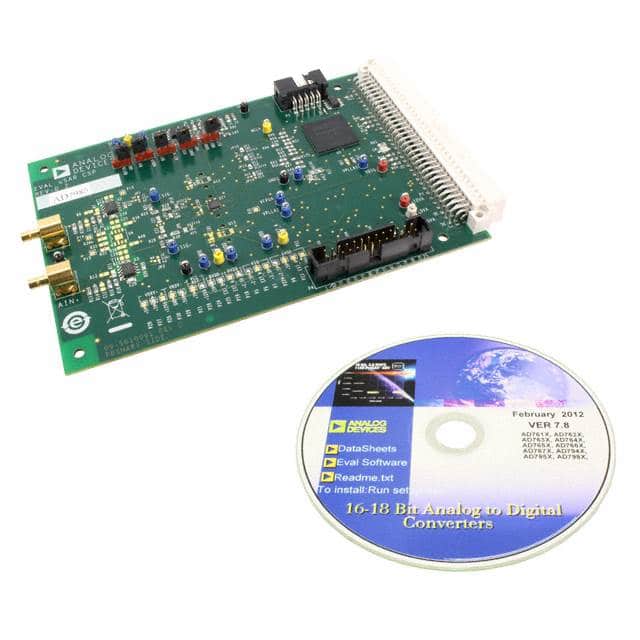

- detail: AD7985 PulSAR® 16 Bit 2.5M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
