دیتاشیت MCP1501T-40E/CHY
مشخصات دیتاشیت
| نام دیتاشیت | MCP1501 Datasheet |
|---|---|
| حجم فایل | 862.962 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |

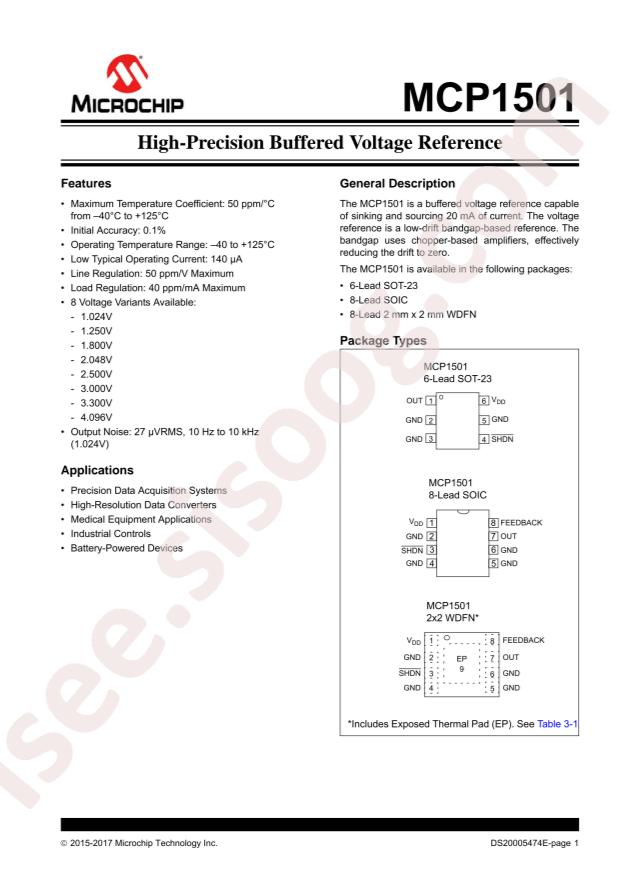

دانلود دیتاشیت MCP1501 Datasheet |
MCP1501 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Microchip Tech MCP1501T-40E/CHY
- Tolerance: ±0.1%
- Output Type: Fixed
- Input Voltage: 4.3V~5.5V
- Output Current: 20mA
- Output Voltage: 4.096V
- Reference Type: series connection
- Supply Current: 550uA
- Noise - 10Hz to 10kHz: 110uVrms
- Operating Temperature: -40°C~+125°C@(Ta)
- Noise - 1/10Hz to 10Hz: 20uVrms
- Temperature Coefficient: 50ppm/°C
- Package: SOT-23-6
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Voltage - Output (Min/Fixed): 4.096V
- Current - Output: 20mA
- Noise - 0.1Hz to 10Hz: 20µVrms
- Voltage - Input: 4.3V ~ 5.5V
- Current - Supply: 550µA
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
- detail: Series Voltage Reference IC ±0.1% SOT-23-6
