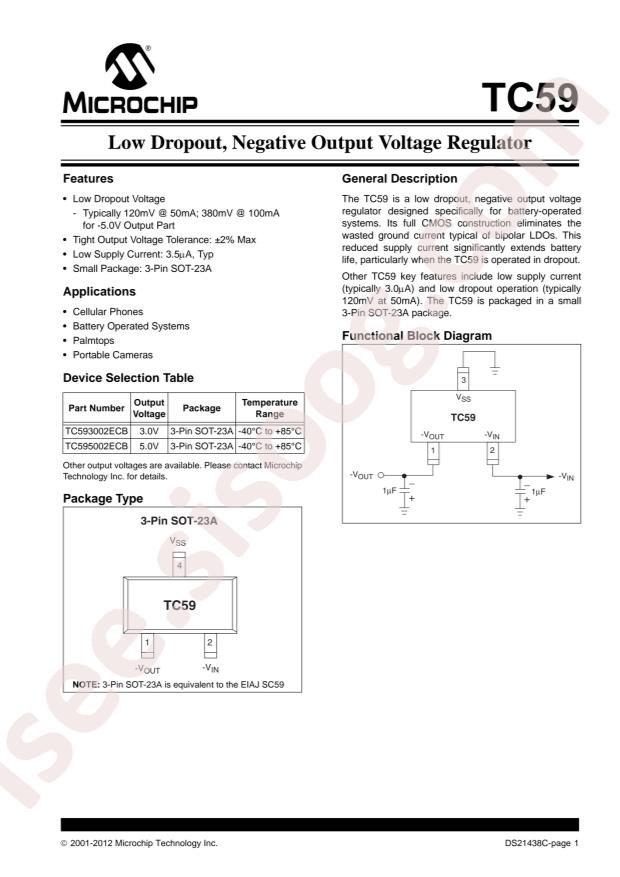

دیتاشیت TC595002ECBTR
مشخصات دیتاشیت
| نام دیتاشیت |
TC59
|
| حجم فایل |
331.628
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Microchip Tech TC595002ECBTR
-
Output Current:
100mA
-
Output Voltage:
5V
-
Dropout Voltage:
0.6V@(100mA)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
10V
-
Operating Temperature:
-40°C~+85°C@(Tj)
-
Quiescent Current (Ground Current):
7uA
-
Package:
SOT-23-3
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Negative
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
-10V
-
Voltage - Output (Min/Fixed):
-5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.6V @ 100mA
-
Current - Output:
100mA
-
Current - Quiescent (Iq):
7µA
-
PSRR:
-
-
Control Features:
-
-
Protection Features:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3
-
Base Part Number:
TC59
-
detail:
Linear Voltage Regulator IC 1 Output 100mA SOT-23-3
