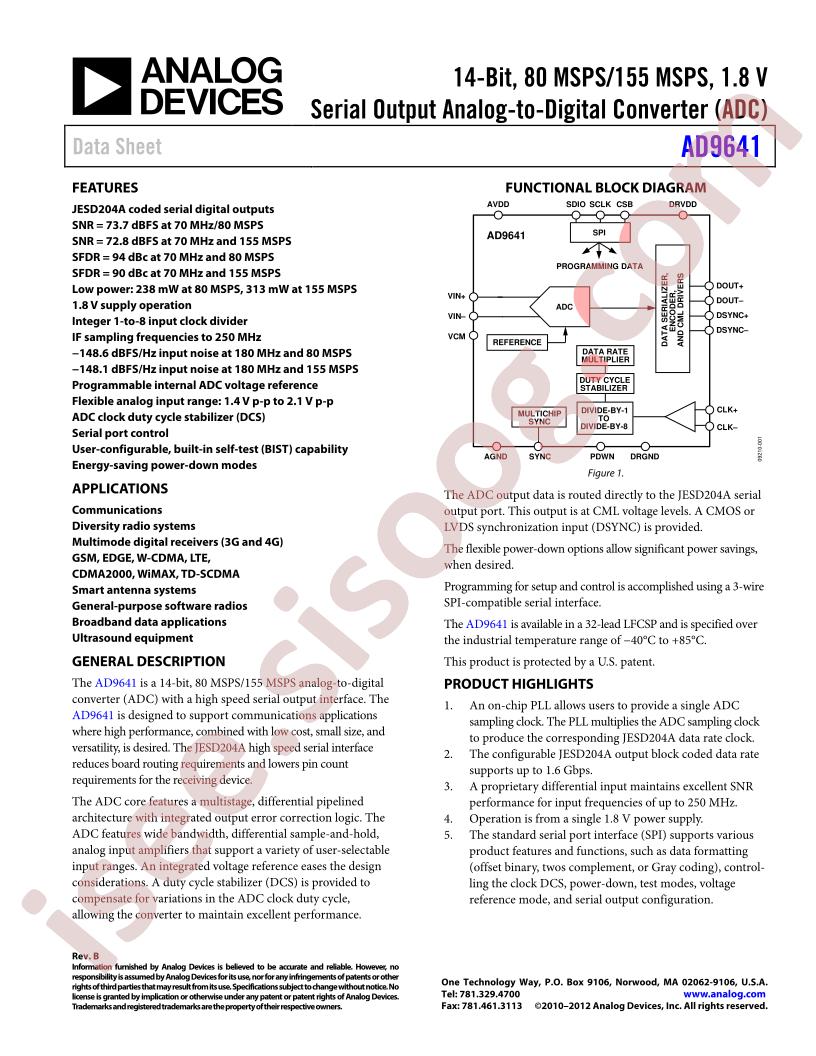

دیتاشیت AD9641
مشخصات دیتاشیت
| نام دیتاشیت | AD9641 |
|---|---|
| حجم فایل | 2018.937 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |
AD9641 |
دانلود دیتاشیت |
|---|
سایر مستندات
AD9641BCPZRL7-80 36 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD9641BCPZ-80
- resolution: 14Bit
- Supply Voltage: 1.7V~1.9V
- differential input: Yes
- number of channels: 1
- sampling frequency: 80MHz
- Operating Temperature: -40°C~+85°C
- Package: LFCSP-32-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 14
- Sampling Rate (Per Second): 80M
- Number of Inputs: 1
- Input Type: Differential
- Data Interface: JESD204A
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: Internal
- Voltage - Supply, Analog: 1.7V ~ 1.9V
- Voltage - Supply, Digital: 1.7V ~ 1.9V
- Features: -
- Package / Case: 32-WFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP (5x5)
- Mounting Type: Surface Mount
- Base Part Number: AD9641
- detail: 14 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-LFCSP (5x5)
