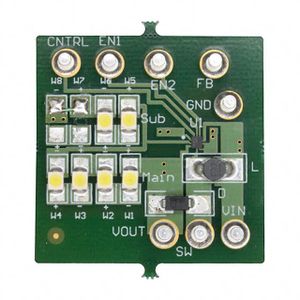

LM3503 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM3503
|
|
حجم فایل
|
1432.351
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
Series:
-
-
Type:
DC DC Regulator
-
Package / Case:
10-WFBGA, DSBGA
-
Frequency:
1MHz
-
Number of Outputs:
2
-
Topology:
Step-Up (Boost)
-
Part Status:
Obsolete
-
Mounting Type:
Surface Mount
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Internal Switch(s):
Yes
-
Applications:
Backlight
-
Manufacturer:
Texas Instruments
-
Voltage - Supply (Min):
2.5V
-
Current - Output / Channel:
600mA (Switch)
-
Voltage - Output:
25V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
LM3503
-
Supplier Device Package:
10-TµSMD (1.9x2.07)
-
Voltage - Supply (Max):
5.5V
-
Dimming:
Analog, PWM
-
detail:
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 600mA (Switch) 10-TµSMD (1.9x2.07)
