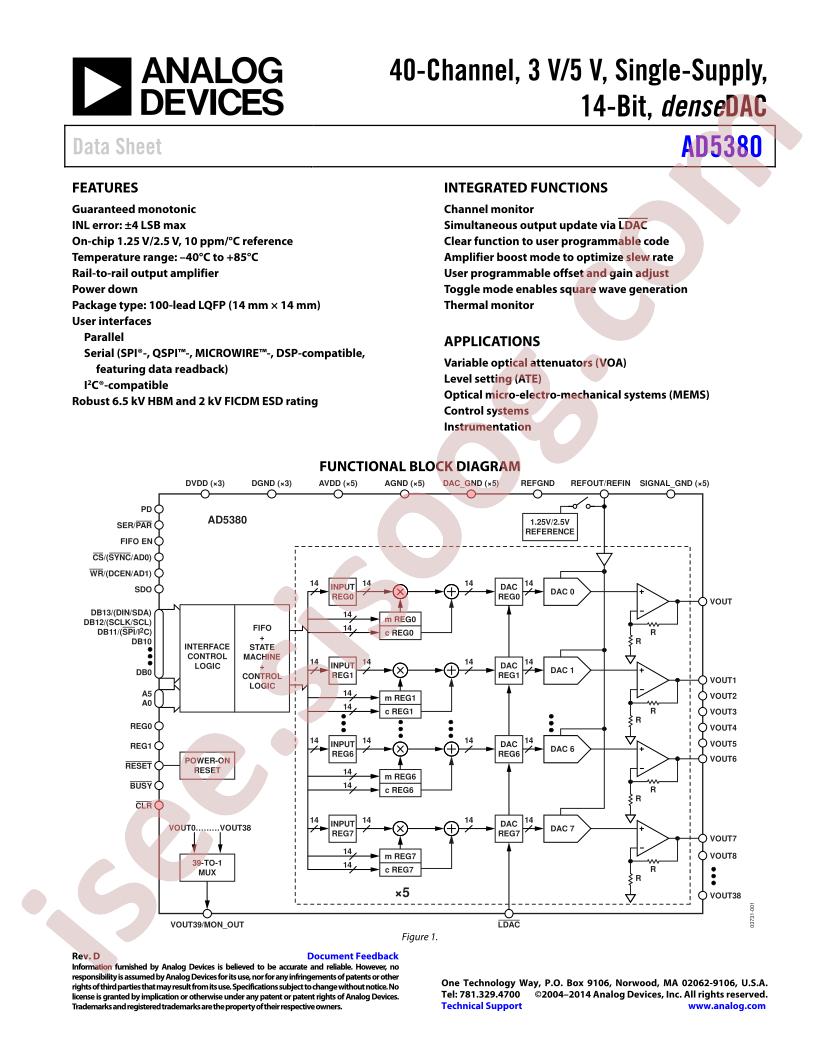

دیتاشیت AD5380BSTZ-3
مشخصات دیتاشیت
| نام دیتاشیت |
AD5380
|
| حجم فایل |
1281.588
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
40
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Tray
-
Part Status:
Active
-
Number of Bits:
14
-
Number of D/A Converters:
40
-
Settling Time:
8µs
-
Output Type:
Voltage - Buffered
-
Differential Output:
No
-
Data Interface:
I²C, Parallel, SPI, DSP
-
Reference Type:
External, Internal
-
Voltage - Supply, Analog:
2.7V ~ 3.6V
-
Voltage - Supply, Digital:
2.7V ~ 5.5V
-
INL/DNL (LSB):
±4 (Max), -1/+2 (Max)
-
Architecture:
String DAC
-
Operating Temperature:
-40°C ~ 85°C
-
Package / Case:
100-LQFP
-
Supplier Device Package:
100-LQFP (14x14)
-
Mounting Type:
Surface Mount
-
Base Part Number:
AD5380
-
detail:
14 Bit Digital to Analog Converter 40 100-LQFP (14x14)
