دیتاشیت ATTINY45-20SUR
مشخصات دیتاشیت
| نام دیتاشیت | ATTINY25,45,85(V) Summary |
|---|---|
| حجم فایل | 649.989 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت ATTINY25,45,85(V) Summary |

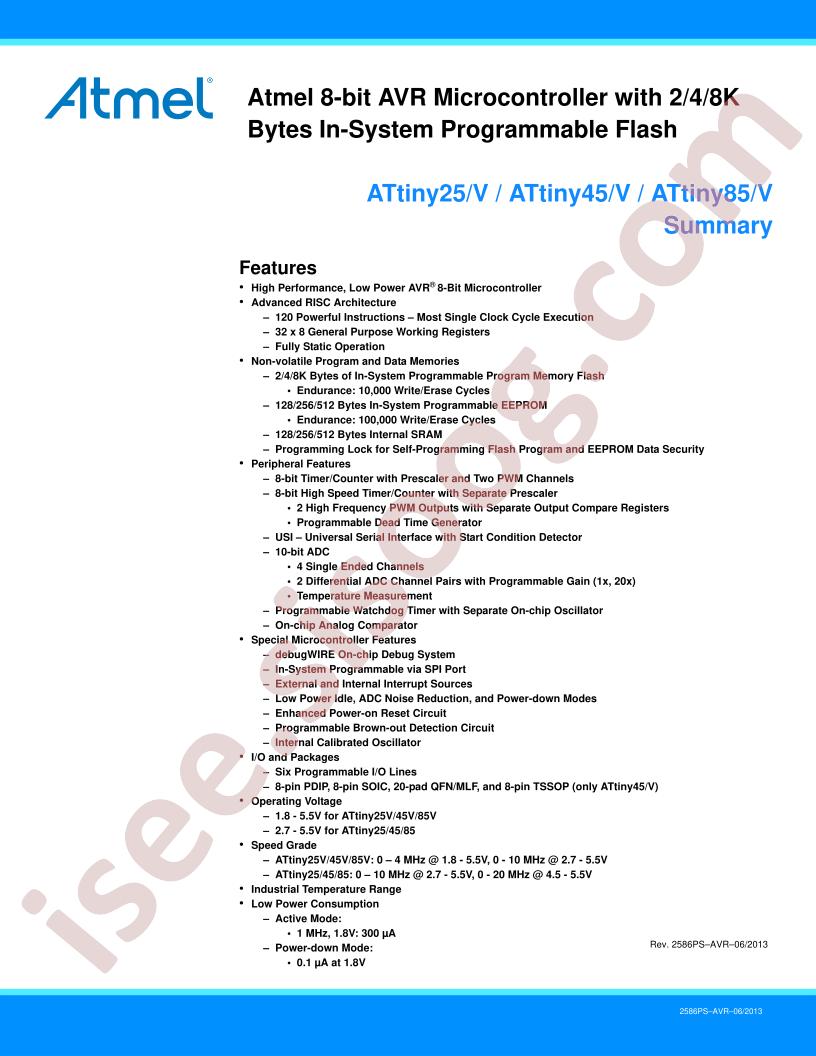

ATTINY25,45,85(V) Summary Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: 256Byte
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 256Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATTINY45-20SUR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 20MHz
- GPIO Ports Number: 6
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.7V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: SOP-8-208mil
- Manufacturer: Microchip Tech
- Series: AVR® ATtiny
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 20MHz
- Connectivity: USI
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 6
- Program Memory Size: 4KB (2K x 16)
- EEPROM Size: 256 x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: A/D 4x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: ATTINY45
- detail: AVR AVR® ATtiny Microcontroller IC 8-Bit 20MHz 4KB (2K x 16) FLASH 8-SOIC
