دیتاشیت ATTINY2313V-10SUR
مشخصات دیتاشیت
| نام دیتاشیت | ATtiny2313(V) Datasheet Summary |
|---|---|
| حجم فایل | 384.728 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

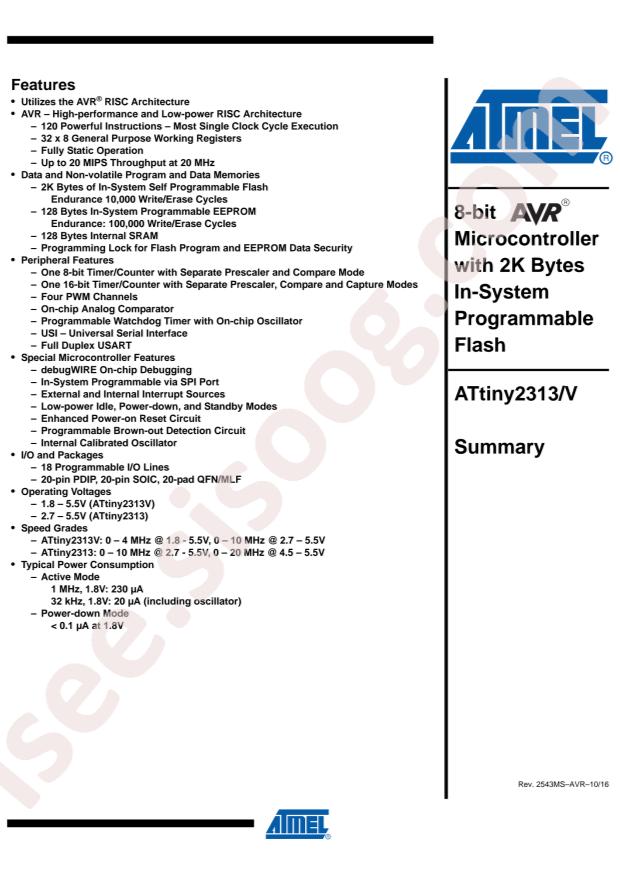

دانلود دیتاشیت ATtiny2313(V) Datasheet Summary |
ATtiny2313(V) Datasheet Summary Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 128Byte
- Watchdog: Yes
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Microchip Tech ATTINY2313V-10SUR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 10MHz
- GPIO Ports Number: 18
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 1KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: SOP-20-300mil
- Manufacturer: Microchip Tech
- Series: AVR® ATtiny
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 10MHz
- Connectivity: SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 18
- Program Memory Size: 2KB (1K x 16)
- EEPROM Size: 128 x 8
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
- Data Converters: -
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 20-SOIC
- Base Part Number: ATTINY2313
- detail: AVR AVR® ATtiny Microcontroller IC 8-Bit 10MHz 2KB (1K x 16) FLASH 20-SOIC
