دیتاشیت AD9268BCPZRL7-125
مشخصات دیتاشیت
| نام دیتاشیت | AD9268 |
|---|---|
| حجم فایل | 2340.456 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت AD9268 |

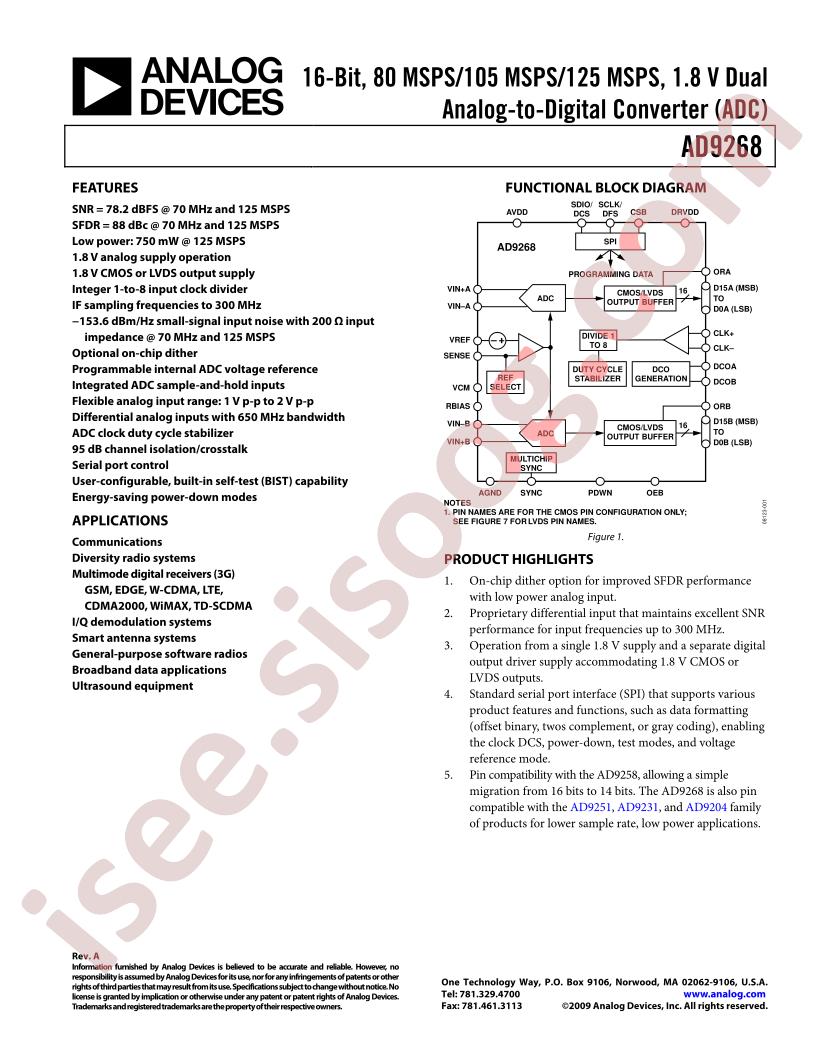

AD9268 Datasheet |
|---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 16
- Sampling Rate (Per Second): 125M
- Number of Inputs: 2
- Input Type: Differential
- Data Interface: LVDS - Parallel, Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 2
- Architecture: Pipelined
- Reference Type: External, Internal
- Voltage - Supply, Analog: 1.7V ~ 1.9V
- Voltage - Supply, Digital: 1.7V ~ 1.9V
- Features: Simultaneous Sampling
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 64-VFQFN Exposed Pad, CSP
- Supplier Device Package: 64-LFCSP-VQ (9x9)
- Mounting Type: Surface Mount
- Base Part Number: AD9268
- detail: 16 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-LFCSP-VQ (9x9)
