دیتاشیت MCP16321T-250E/NG
مشخصات دیتاشیت
نام دیتاشیت | MCP16321,2 Datasheet |
---|---|
حجم فایل | 763.707 کیلوبایت |
نوع فایل | |
تعداد صفحات | 34 |

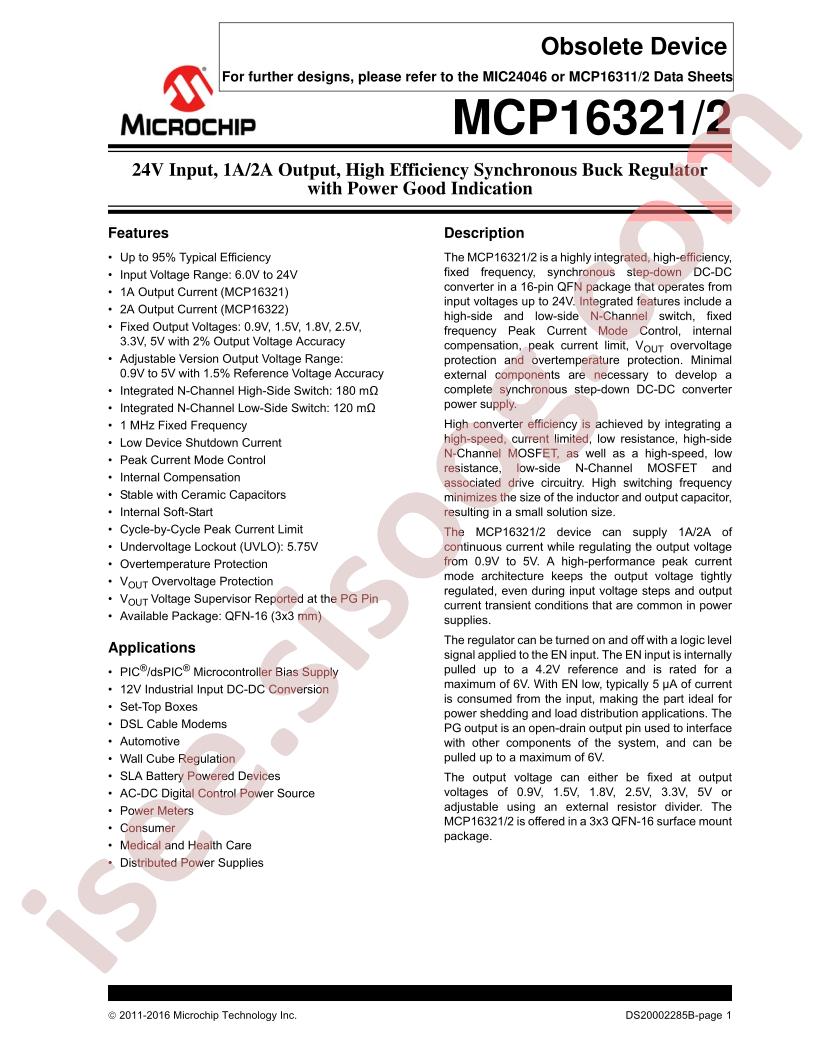

دانلود دیتاشیت MCP16321,2 Datasheet |
MCP16321,2 Datasheet Datasheet |
---|
مشخصات
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 6V
- Voltage - Input (Max): 24V
- Voltage - Output (Min/Fixed): 2.5V
- Voltage - Output (Max): -
- Current - Output: 1A
- Frequency - Switching: 1MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
- Base Part Number: MCP16321
- detail: Buck Switching Regulator IC Positive Fixed 2.5V 1 Output 1A 16-VFQFN Exposed Pad
