TN2425N8-G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TN2425N8-G
|
|
حجم فایل
|
60.631
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Microchip Tech TN2425N8-G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.6W
-
Drain Source Voltage (Vdss):
250V
-
Input Capacitance (Ciss@Vds):
200pF@25V
-
Continuous Drain Current (Id):
480mA
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.5Ω@500mA,10V
-

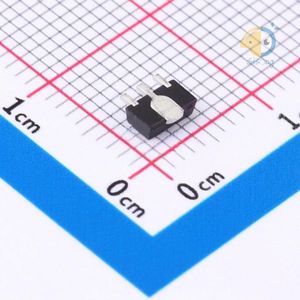

Package:
SOT-89-3
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
25V
-
Current - Continuous Drain (Id) @ 25°C:
480mA (Tj)
-
Drive Voltage (Max Rds On, Min Rds On):
3V, 10V
-
Rds On (Max) @ Id, Vgs:
3.5Ohm @ 500mA, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 1mA
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
200pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
1.6W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-89-3
-
Package / Case:
TO-243AA
-
detail:
N-Channel 25V 480mA (Tj) 1.6W (Tc) Surface Mount SOT-89-3
