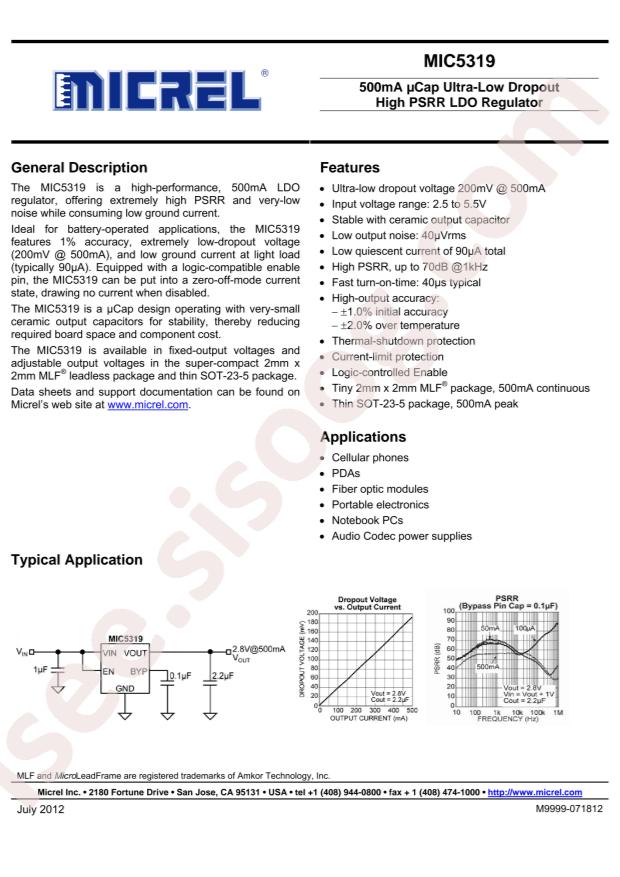

دیتاشیت MIC5319-3.3YD5-TR

MIC5319 Datasheet

مشخصات دیتاشیت

نام دیتاشیت MIC5319 Datasheet
حجم فایل 1103.956 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت MIC5319 Datasheet

MIC5319 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Feature: Overcurrent Protection;Thermal Protection
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MIC5319-3.3YD5-TR
  • Output Type: Fixed
  • Output Current: 500mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 400mV@(500mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 150uA
  • Power Supply Rejection Ratio (PSRR): 70dB@(1kHz),60dB@(10kHz)
  • Package: TSOT-23-5
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.4V @ 500mA
  • Current - Output: 500mA
  • Current - Quiescent (Iq): 150µA
  • PSRR: 70dB ~ 60dB (1kHz ~ 10kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-5 Thin, TSOT-23-5
  • Supplier Device Package: TSOT-23-5
  • Base Part Number: MIC5319
  • detail: Linear Voltage Regulator IC 1 Output 500mA TSOT-23-5
