دیتاشیت MCP4912T-E/SL

MCP4902,4912,4922

مشخصات دیتاشیت

نام دیتاشیت MCP4902,4912,4922
حجم فایل 3791.317 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

دانلود دیتاشیت MCP4902,4912,4922

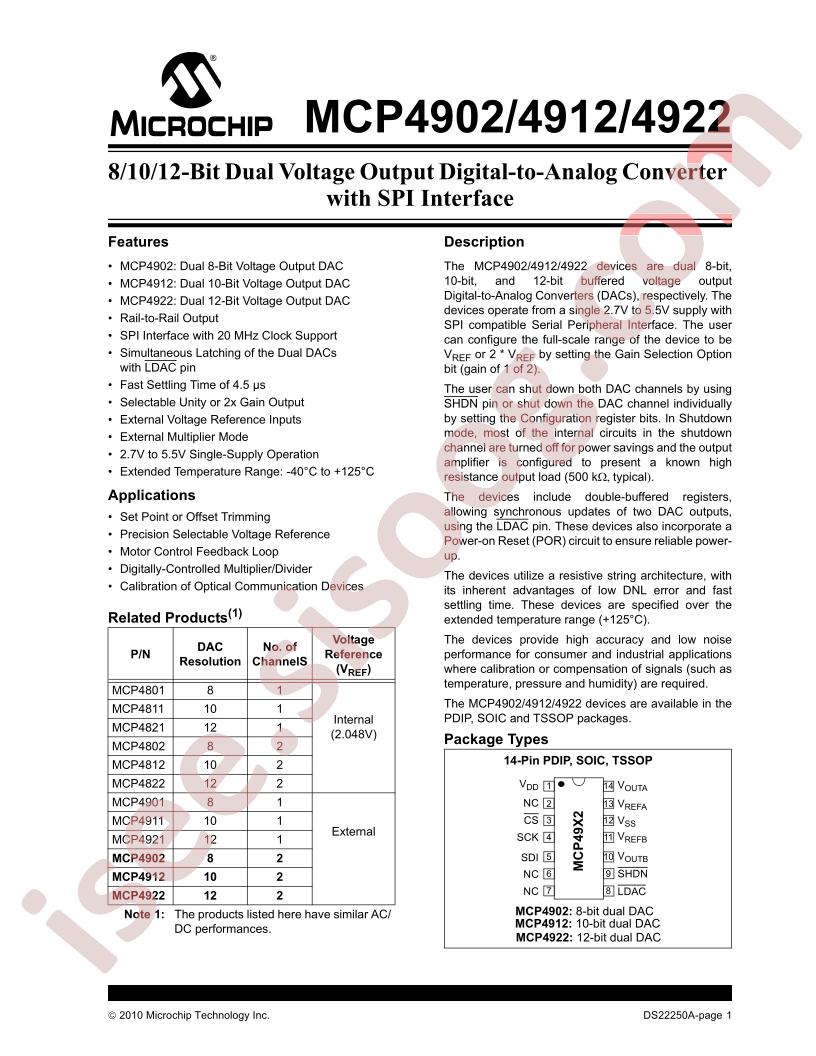

MCP4902,4912,4922 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Microchip Tech MCP4912T-E/SL
  • Interface: SPI
  • Resolution: 10Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 4.5us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±1LSB;±0.2LSB
  • Operating Temperature: -40°C~+125°C
  • Package: SOP-14
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 10
  • Number of D/A Converters: 2
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±1, ±0.2
  • Architecture: String DAC
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: MCP4912
  • detail: 10 Bit Digital to Analog Converter 2 14-SOIC
