دیتاشیت SN74AS869NT
مشخصات دیتاشیت
| نام دیتاشیت | SN54AS867/869, SN74ALS867A/869, SN74AS867/869 |
|---|---|
| حجم فایل | 409.729 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN54AS867/869, SN74ALS867A/869, SN74AS867/869 |

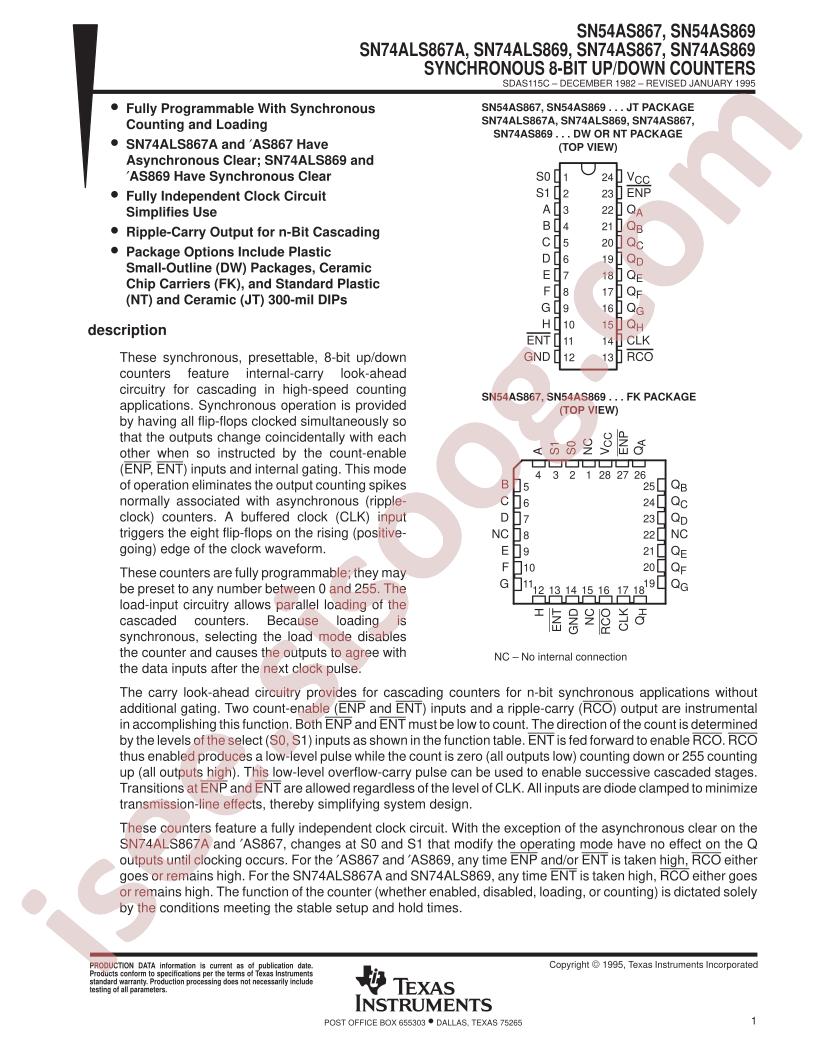

SN54AS867/869, SN74ALS867A/869, SN74AS867/869 Datasheet |
|---|
مشخصات
- Series: 74AS
- Package / Case: 24-DIP (0.300", 7.62mm)
- Packaging: Tube
- Number of Elements: 1
- Supplier Device Package: 24-PDIP
- Mounting Type: Through Hole
- Part Status: Obsolete
- Number of Bits per Element: 8
- Direction: Up, Down
- Timing: Synchronous
- Operating Temperature: 0°C ~ 70°C
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Reset: Synchronous
- Count Rate: 45MHz
- Base Part Number: SN74AS8
- Logic Type: Binary Counter
- Trigger Type: Positive Edge
- detail: Counter IC Binary Counter 1 Element 8 Bit Positive Edge 24-PDIP
