دیتاشیت DAC904E/2K5G4

DAC904

مشخصات دیتاشیت

نام دیتاشیت DAC904
حجم فایل 1089.991 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت DAC904

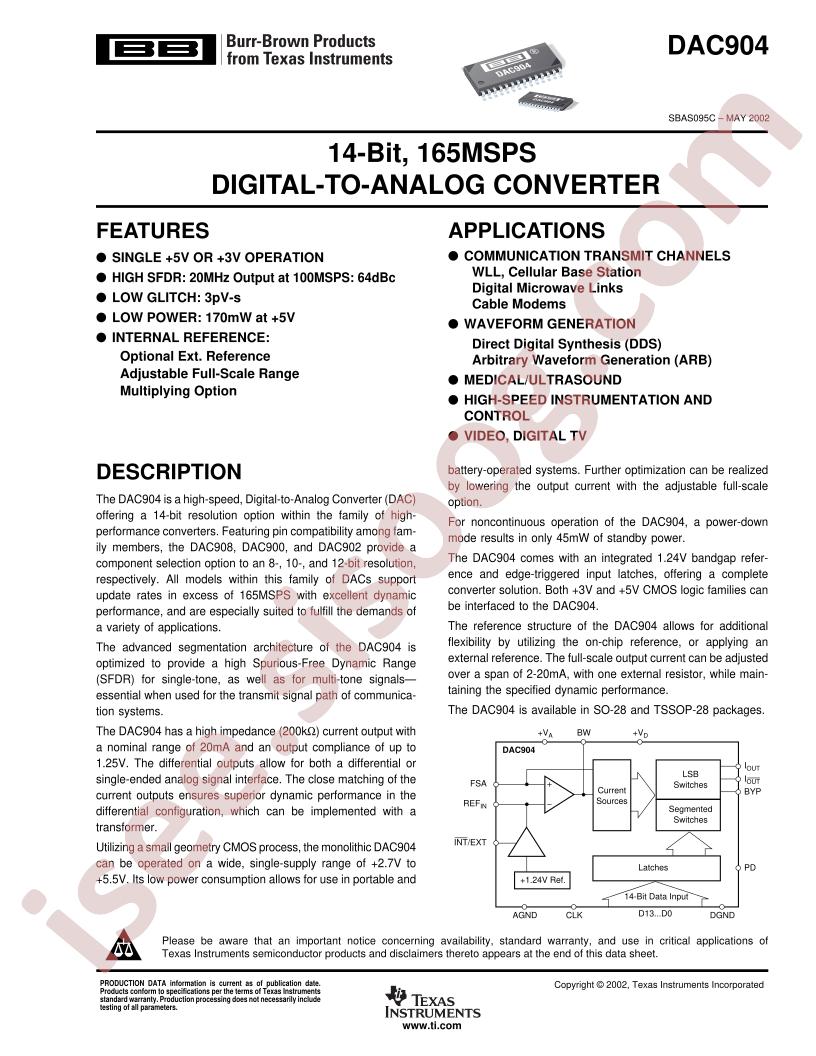

DAC904 Datasheet

مشخصات

  • Series: SpeedPlus™
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±3, ±2.5
  • Supplier Device Package: 28-TSSOP
  • Package / Case: 28-TSSOP (0.173", 4.40mm Width)
  • Number of Bits: 14
  • Differential Output: Yes
  • Part Status: Obsolete
  • Reference Type: External, Internal
  • Settling Time: 30ns (Typ)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Architecture: Current Source
  • Manufacturer: Texas Instruments
  • Output Type: Current - Unbuffered
  • Number of D/A Converters: 1
  • Packaging: Tape & Reel (TR)
  • Base Part Number: DAC904
  • Data Interface: Parallel
  • detail: 14 Bit Digital to Analog Converter 1 28-TSSOP
