دیتاشیت MCP14A0901T-E/MNY

MCP14A0901/2~

مشخصات دیتاشیت

نام دیتاشیت MCP14A0901/2~
حجم فایل 1029.814 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت MCP14A0901/2~

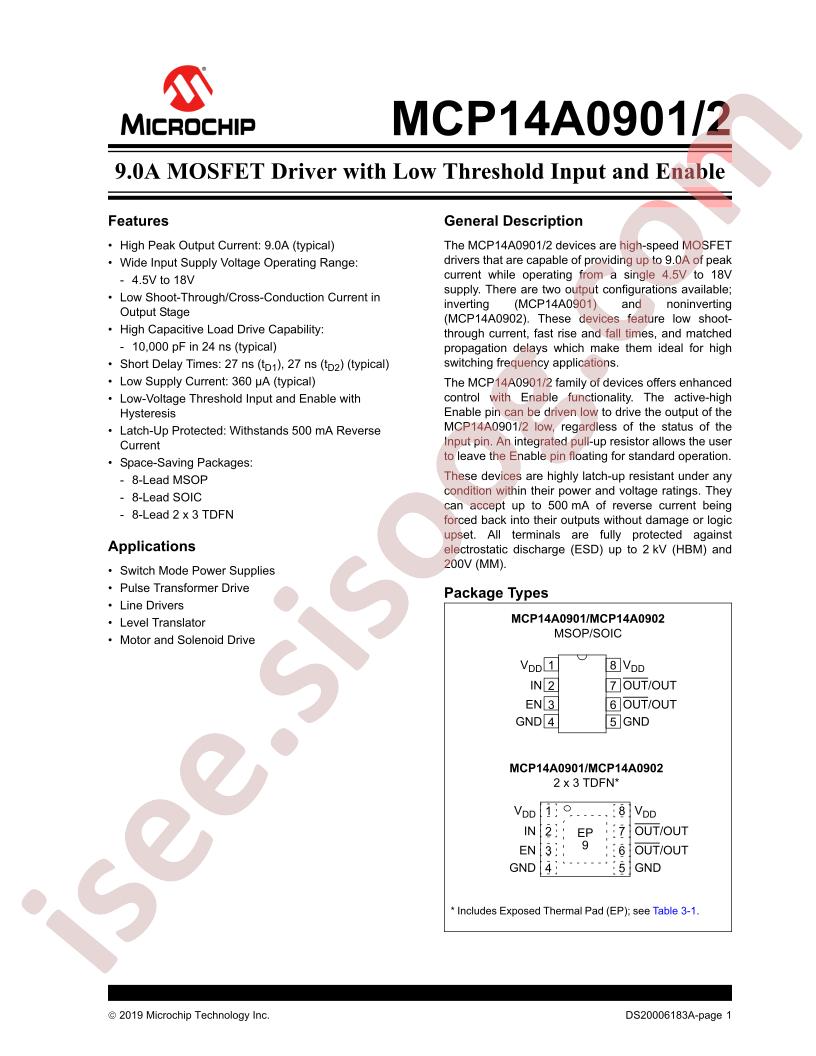

MCP14A0901/2~ Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Driven Configuration: High-Side or Low-Side
  • Channel Type: Synchronous
  • Number of Drivers: 2
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 9A, 9A
  • Input Type: Inverting
  • Rise / Fall Time (Typ): 22ns, 22ns
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-WFDFN Exposed Pad
  • Supplier Device Package: 8-TDFN (2x3)
  • detail: High-Side or Low-Side Gate Driver IC Inverting 8-TDFN (2x3)
