دیتاشیت MIC23250-AAYMT-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC23250 |
|---|---|
| حجم فایل | 1012.309 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت MIC23250 |

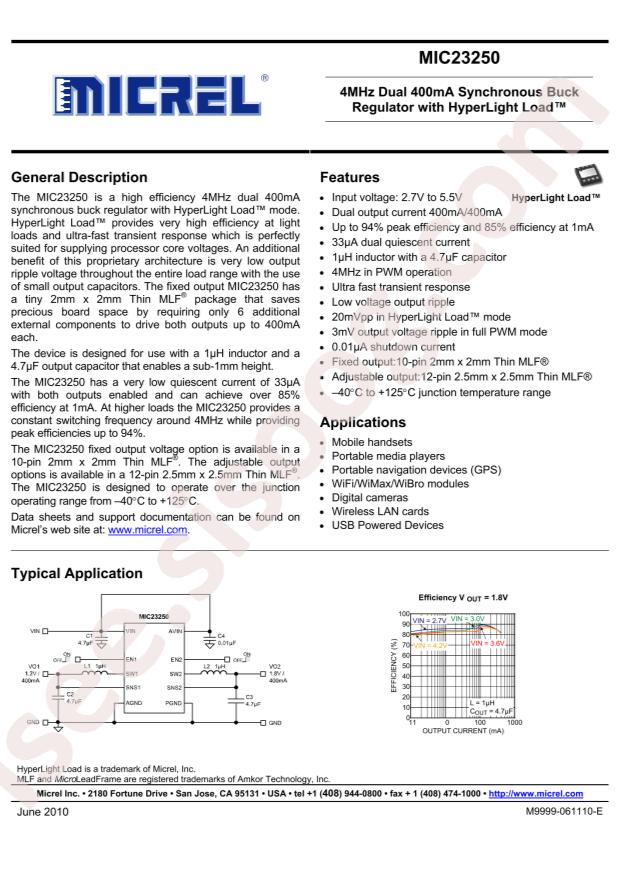

MIC23250 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Microchip Tech MIC23250-AAYMT-TR
- Output Type: Adjustable
- Input Voltage: 2.7V~5.5V
- Output Voltage: 0.72V~4.73V
- Number of Outputs: 2
- Switching Frequency: 4MHz
- Output Current (Max): 400mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: TMLF-12
- Manufacturer: Microchip Tech
- Series: HyperLight Load®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.72V
- Voltage - Output (Max): 4.73V
- Current - Output: 400mA
- Frequency - Switching: 4MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 12-UFDFN Exposed Pad, 12-TMLF®
- Supplier Device Package: 12-TMLF® (2.5x2.5)
- Base Part Number: MIC23250
- detail: Buck Switching Regulator IC Positive Adjustable 0.72V 2 Output 400mA 12-UFDFN Exposed Pad, 12-TMLF®
