- دیتاشیت MIC39102YM-TR
MIC39102YM-TR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MIC39102YM-TR |
|---|---|
| حجم فایل | 85.715 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت MIC39102YM-TR |
دانلود دیتاشیت |
|---|
سایر مستندات

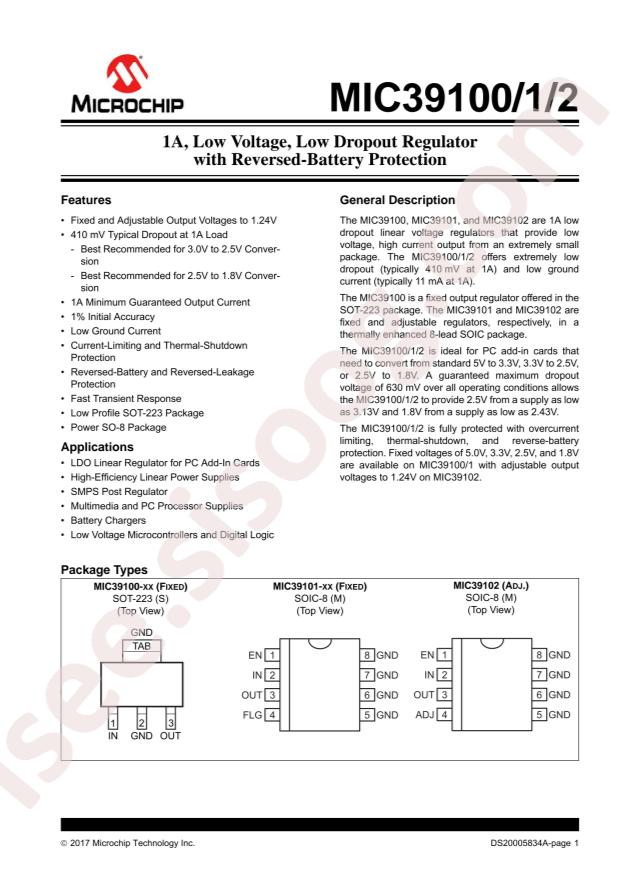

MIC39100, MIC39101, MIC39102 24 pages
مشخصات فنی
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection;Reverse connection protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech MIC39102YM-TR
- Output Type: Adjustable
- Output Current: 1A
- Output Voltage: 1.24V~16V
- Dropout Voltage: 0.63V@(1A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 16V
- Operating Temperature: -40°C~+125°C
- Package: SOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 16V
- Voltage - Output (Min/Fixed): 1.24V
- Voltage - Output (Max): 16V
- Voltage Dropout (Max): 0.63V @ 1A
- Current - Output: 1A
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: MIC39102
- detail: Linear Voltage Regulator IC 1 Output 1A 8-SOIC
