دیتاشیت MIC33153YHJ-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC33153 Data Sheet |
|---|---|
| حجم فایل | 3182.195 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

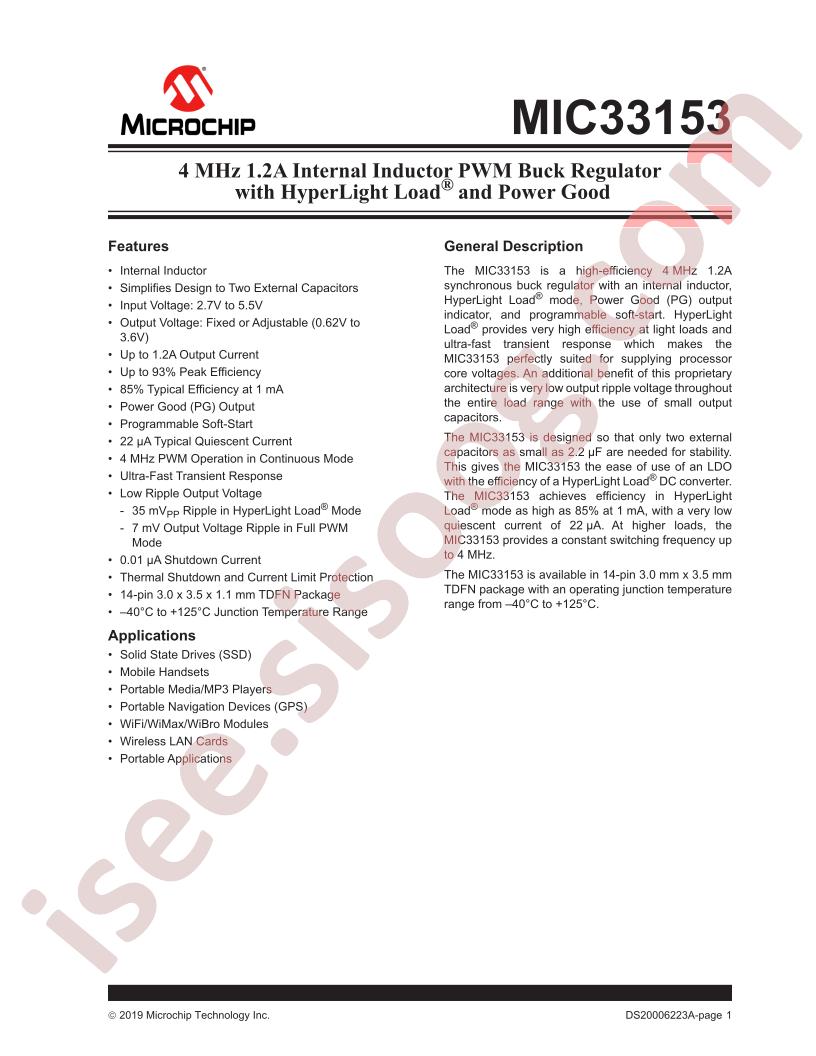

دانلود دیتاشیت MIC33153 Data Sheet |
MIC33153 Data Sheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Output Type: Adjustable
- Input Voltage: 2.7V~5.5V
- Output Voltage: 0.62V~3.6V
- Number of Outputs: 1
- Switching Frequency: 4MHz
- Output Current (Max): 1.2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: MLF-14
- Manufacturer: Microchip Tech
- Series: HyperLight Load®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.62V
- Voltage - Output (Max): 3.6V
- Current - Output: 1.2A
- Frequency - Switching: 4MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 14-VFDFN Exposed Pad, 14-MLF®
- Supplier Device Package: 14-MLF® (3x3.5)
- Base Part Number: MIC33153
- detail: Buck Switching Regulator IC Positive Adjustable 0.62V 1 Output 1.2A 14-VFDFN Exposed Pad, 14-MLF®
