دیتاشیت AD9691BCPZRL7-1250
مشخصات دیتاشیت
| نام دیتاشیت | AD9691 |
|---|---|
| حجم فایل | 1740.798 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 72 |
دانلود دیتاشیت AD9691 |

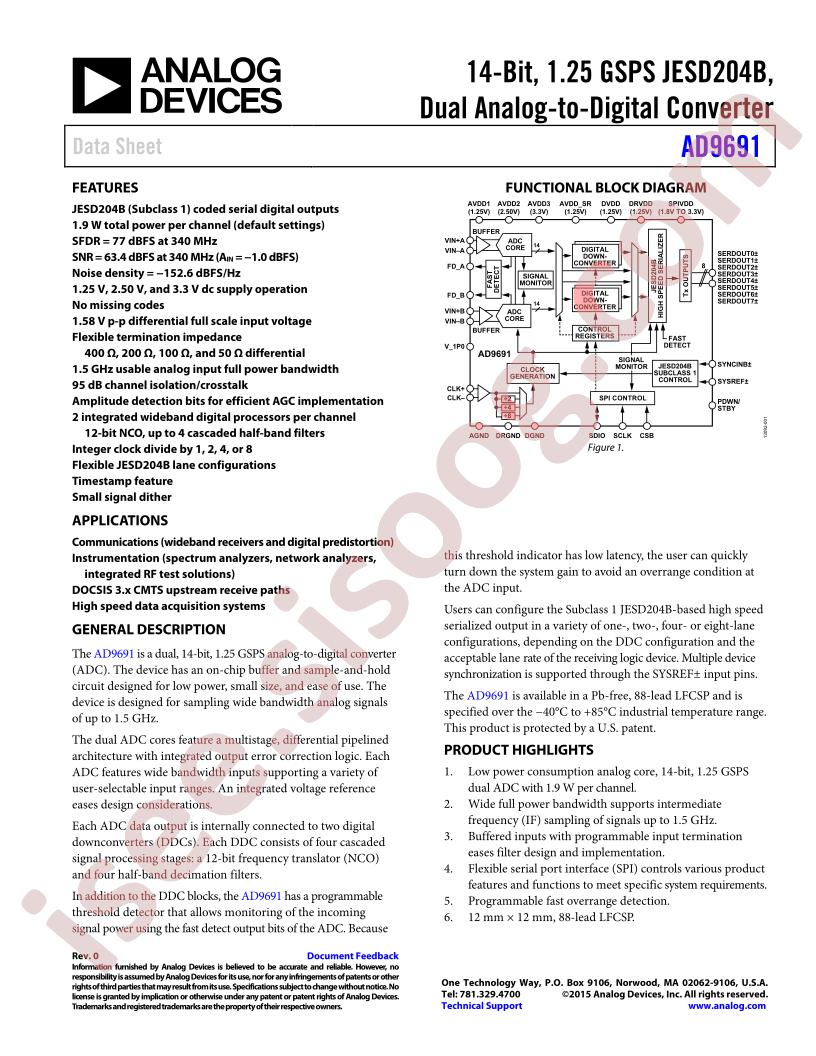

AD9691 Datasheet |
|---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 14
- Sampling Rate (Per Second): 1.25G
- Number of Inputs: 2
- Input Type: Differential
- Data Interface: JESD204B
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: Internal
- Voltage - Supply, Analog: 1.22V ~ 1.28V, 2.44V ~ 2.56V
- Voltage - Supply, Digital: 1.22V ~ 1.28V
- Features: Simultaneous Sampling
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 88-VFQFN Exposed Pad, CSP
- Supplier Device Package: 88-LFCSP-VQ (12x12)
- Mounting Type: Surface Mount
- Base Part Number: AD9691
- detail: 14 Bit Analog to Digital Converter 2 Input 1 Pipelined 88-LFCSP-VQ (12x12)
