دیتاشیت MIC2194YM-TR

MIC2194

مشخصات دیتاشیت

نام دیتاشیت MIC2194
حجم فایل 62.716 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت MIC2194

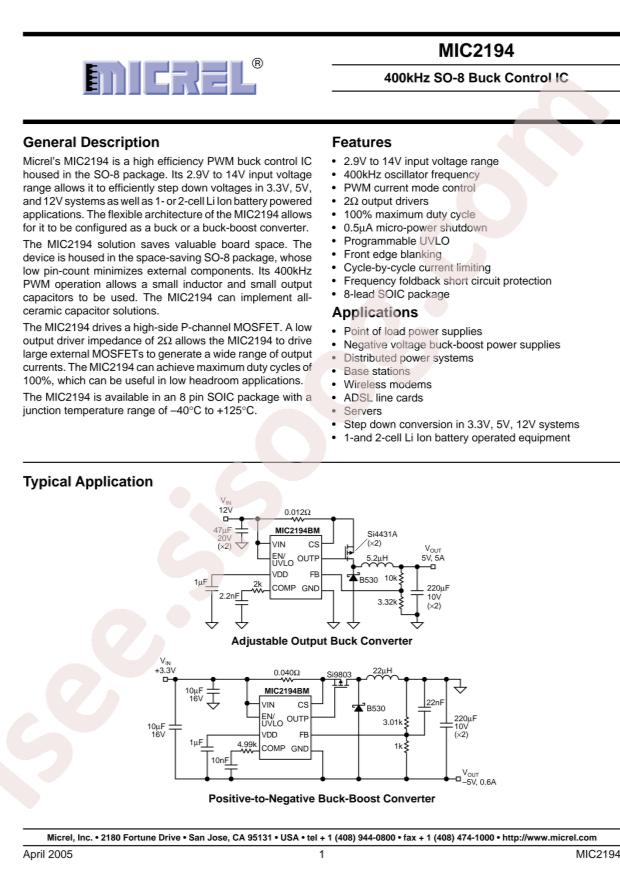

MIC2194 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Type: Transistor Driver
  • Function: Step-Down, Step-Up/Step-Down
  • Output Configuration: Positive
  • Topology: Buck, Buck-Boost
  • Number of Outputs: 1
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 2.9V ~ 14V
  • Frequency - Switching: 400kHz
  • Duty Cycle (Max): 100%
  • Synchronous Rectifier: No
  • Clock Sync: No
  • Serial Interfaces: -
  • Control Features: Enable
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: MIC2194
  • detail: Buck, Buck-Boost Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
