- AD9625 Datasheet
AD9625BBPZ-2.6 Datasheet
Datasheet specifications
| Datasheet's name | AD9625 Datasheet |
|---|---|
| File size | 3472.04 KB |
| File type | |
| Number of pages | 72 |
Download Datasheet AD9625 Datasheet |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 12
- Sampling Rate (Per Second): 2.6G
- Number of Inputs: 1
- Input Type: Differential
- Data Interface: JESD204B
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: Internal
- Voltage - Supply, Analog: 1.26V ~ 1.32V, 2.4V ~ 2.6V
- Voltage - Supply, Digital: 1.26V ~ 1.32V, 2.4V ~ 2.6V
- Features: -
- Operating Temperature: -40°C ~ 85°C

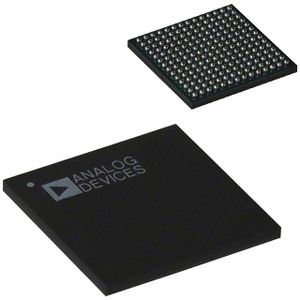

- Package / Case: 196-LFBGA
- Supplier Device Package: 196-BGA (12x12)
- Mounting Type: Surface Mount
- Base Part Number: AD9625
- detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 196-BGA (12x12)
