دیتاشیت MCP1405-E/MF

MCP1403, 04, 05

مشخصات دیتاشیت

نام دیتاشیت MCP1403, 04, 05
حجم فایل 764.768 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت MCP1403, 04, 05

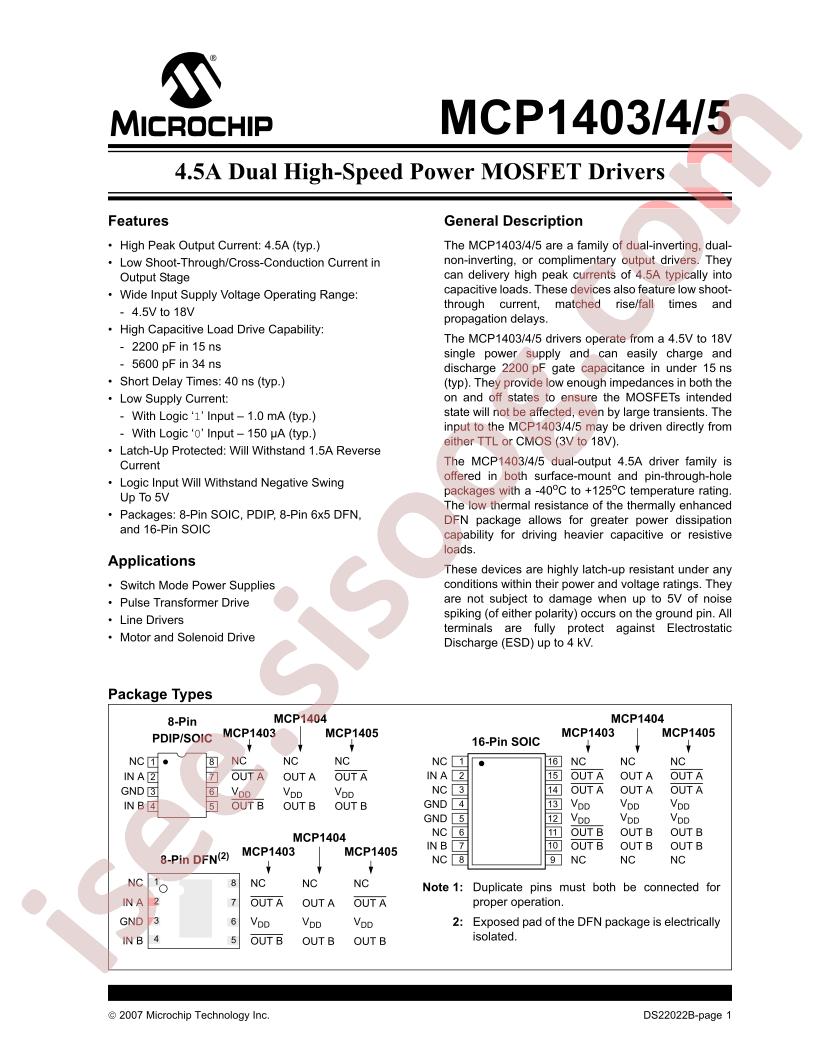

MCP1403, 04, 05 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MCP1405-E/MF
  • Fall Time: 18ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 4.5A
  • Peak Output Current(source): 4.5A
  • Package: DFN-8-EP(5x6)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: IGBT, N-Channel, P-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.4V
  • Current - Peak Output (Source, Sink): 4.5A, 4.5A
  • Input Type: Inverting, Non-Inverting
  • Rise / Fall Time (Typ): 15ns, 18ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-VDFN Exposed Pad
  • Supplier Device Package: 8-DFN-S (6x5)
  • Base Part Number: MCP1405
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 8-DFN-S (6x5)
