دیتاشیت MD1811K6-G

MD1811

مشخصات دیتاشیت

نام دیتاشیت MD1811
حجم فایل 782.612 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت MD1811

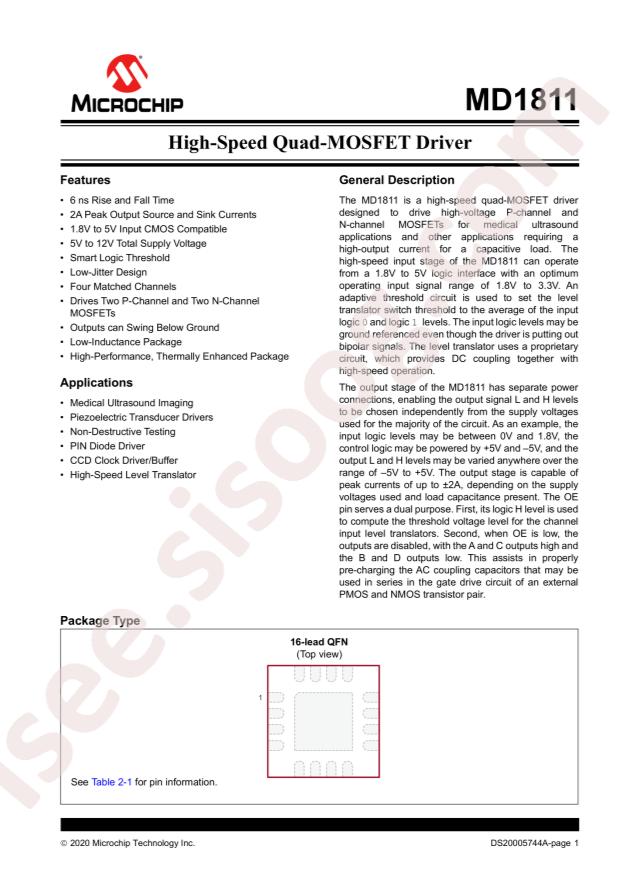

MD1811 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MD1811K6-G
  • Fall Time: 6ns
  • Load Type: MOSFET
  • Rise Time: 6ns
  • Supply Voltage: 5V~12V
  • Number of Drivers: 4
  • Driven Configuration: Half Bridge
  • Operating Temperature: -20°C~+125°C@(Tj)
  • Peak Output Current(sink): 2A
  • Peak Output Current(source): 2A
  • Package: QFN-16-EP(4x4)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 5V ~ 12V
  • Logic Voltage - VIL, VIH: 0.3V, 1.7V
  • Current - Peak Output (Source, Sink): 2A, 2A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 6ns, 6ns
  • Mounting Type: Surface Mount
  • Package / Case: 16-VQFN Exposed Pad
  • Supplier Device Package: 16-QFN (4x4)
  • Base Part Number: MD1811
  • detail: Half-Bridge Gate Driver IC Non-Inverting 16-QFN (4x4)
