MIC22602YML-TR دیتاشیت

مشخصات دیتاشیت

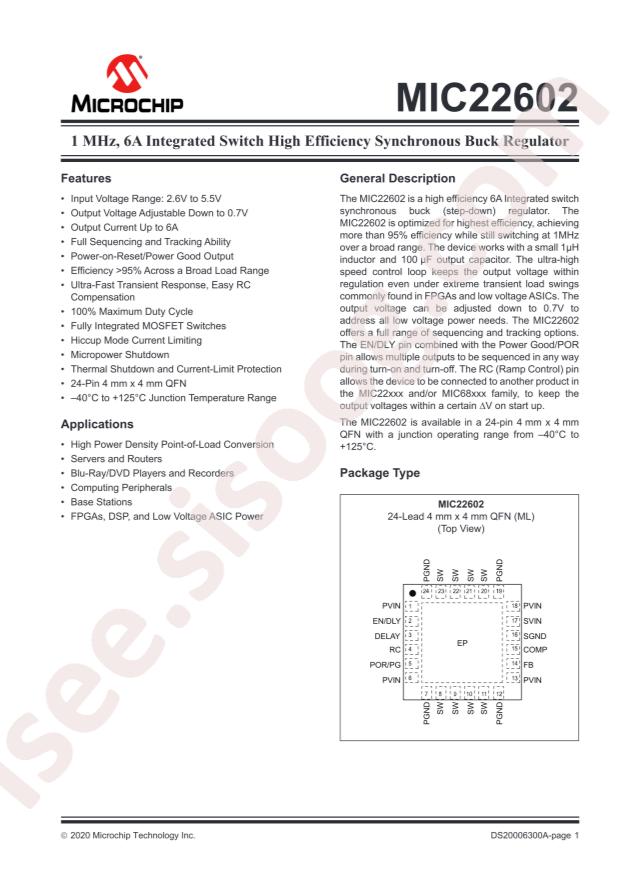

مشاهده دیتاشیت MIC22602YML-TR	دانلود دیتاشیت

MIC22602 28 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Microchip Tech MIC22602YML-TR
Output Type: Adjustable
Input Voltage: 2.6V~5.5V
Output Voltage: 0.7V~5.5V
Number of Outputs: 1
Switching Frequency: 1MHz
Output Current (Max): 6A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: QFN-24-EP(4x4)
Manufacturer: Microchip Tech
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.6V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.7V
Voltage - Output (Max): 5.5V
Current - Output: 6A
Frequency - Switching: 1MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 24-VFQFN Exposed Pad, 24-MLF®
Supplier Device Package: 24-MLF® (4x4)
Base Part Number: MIC22602
detail: Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 6A 24-VFQFN Exposed Pad, 24-MLF®
