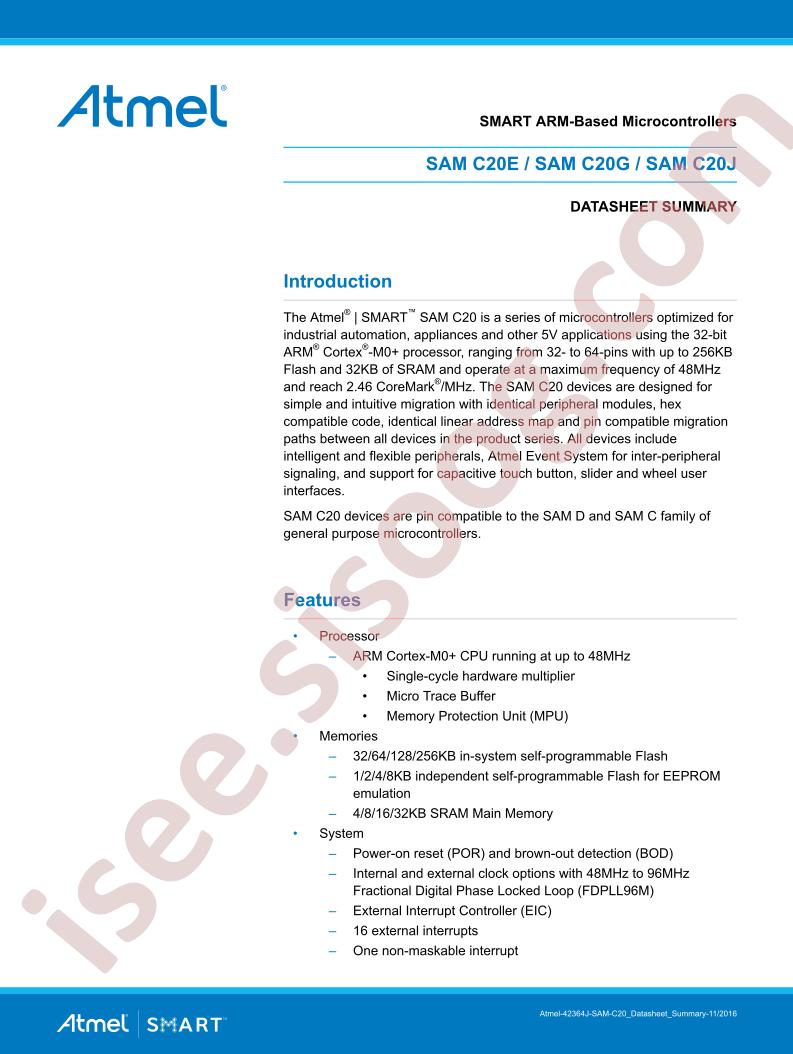

SAM C20,C21 Complete Datasheet
Datasheet specifications
| Datasheet's name | SAM C20,C21 Complete |
|---|---|
| File size | 8888.724 KB |
| File type | |
| Number of pages | 1187 |
Download Datasheet SAM C20,C21 Complete |
Download Datasheet |
|---|
Other documentations
SAMC20 Datasheet Summary 44 pages
ATSAMC20G18A-ANT 1206 pages
Technical specifications
- RoHS: true
- CPU Core: ARM-MSeries
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- ADC (Bit): 12bit
- Datasheet: Microchip Tech ATSAMC20E18A-AUT
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 26
- Direct Memory Access: Yes
- Universal Serial Bus: -
- Operating Voltage Range: 2.7V~5.5V
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: Yes
- Package: TQFP-32(7x7)
- Manufacturer: Microchip Tech
- Series: SAM C20
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: ARM® Cortex®-M0+
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, POR, WDT
- Number of I/O: 26
- Program Memory Size: 256KB (256K x 8)
- Program Memory Type: FLASH
- EEPROM Size: -
- RAM Size: 32K x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: A/D 10x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-TQFP
- Supplier Device Package: 32-TQFP (7x7)
- Base Part Number: ATSAMC20
- detail: ARM® Cortex®-M0+ SAM C20 Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 32-TQFP (7x7)
