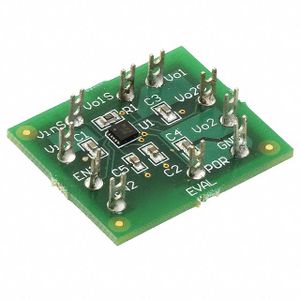

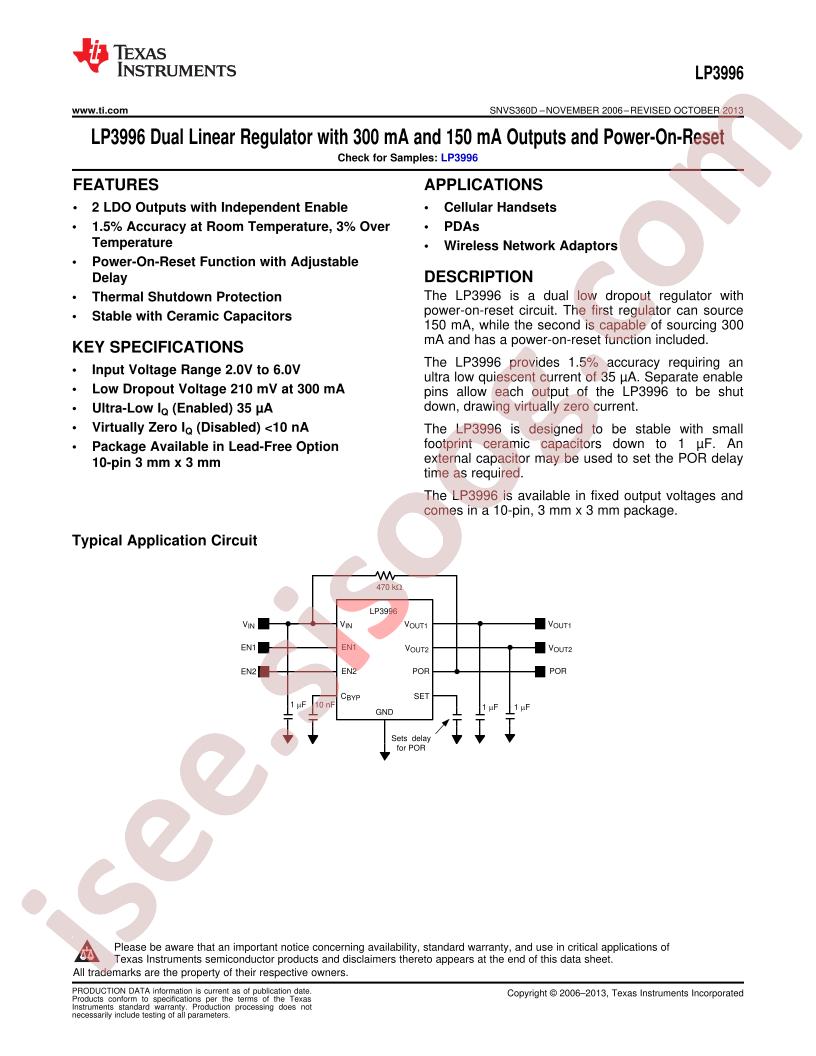

LP3996SD-3030EV Datasheet

LP3996 Datasheet

Datasheet specifications

Datasheet's name LP3996 Datasheet
File size 1223.977 KB
File type pdf
Number of pages 21

Download Datasheet LP3996 Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Control Features: Enable
  • Base Part Number: LP3996
  • Package / Case: 10-WFDFN Exposed Pad
  • Current - Supply (Max): 170µA
  • Part Status: Obsolete
  • Current - Output: 150mA, 300mA
  • PSRR: 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
  • Series: -
  • Voltage - Output (Min/Fixed): 3V
  • Mounting Type: Surface Mount
  • Number of Regulators: 2
  • Current - Quiescent (Iq): 100µA
  • Output Configuration: Positive
  • Voltage Dropout (Max): 0.22V @ 150mA, 0.55V @ 150mA
  • Operating Temperature: -40°C ~ 85°C
  • Supplier Device Package: 10-WSON (3x3)
  • Protection Features: Over Temperature, Short Circuit
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 6V
  • Output Type: Fixed
  • Packaging: Cut Tape (CT)
  • Voltage - Output (Max): -
  • detail: Linear Voltage Regulator IC 2 Output 150mA, 300mA 10-WSON (3x3)
